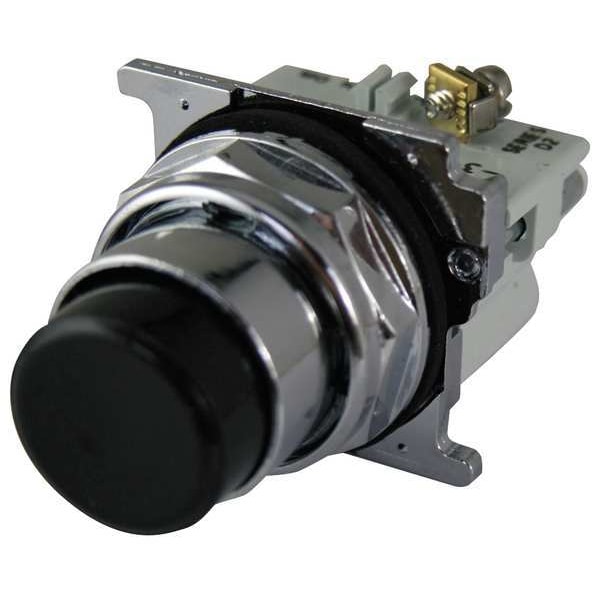

Eaton Non-Illuminated Push Button, 30mm, Black 10250T31B - main

Non-Illuminated Push Button, 30mm, Black

  • Mfr # 10250T31B

  • Zoro # G5229856

product price: $152.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Black
Contact Form
1NO/1NC
Type of Operator
Extended Button
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
10250T31B
Zoro #
G5229856
UPC #
786680123023
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Width
2 in
Product Length/Depth
3 in
Product Height
2 in
Overall Width
2 in
Overall Height
2 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Depth
3 in

Details

Item
Extended Push Button Operator
Material
metal
Color
Black
Contact Form
1NO/1NC
Type of Operator
Extended Button
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Basic Material
Metal
Bezel
Chrome Plated Zinc Die Cast
Head Material
Metal
Standards
CE, CSA, UL Listed
Action
Momentary
Contact Rating
10A @ 600V AC
Terminal Connection
Screw Clamp
IP Rating
IP65
Number of Operators
1
Legend
No Legend
NEMA Rating
12, 13, 3, 3R, 4, 4X
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Type
30.5 mm, Heavy-Duty
Actuator color
Black
Rating
NEMA 3R
Series
10250T
Illumination
Non-illuminated
Certifications
UL Listed
Compliances
CE Marked
Contact configuration
1 NO-1 NC
Operating Mode
Momentary
Actuator
Extended
Actuator material
Plastic
Product Name
Eaton 10250T pushbutton
Mechanical Operating Durability
1.00 x 10^7
Operator Illumination
Non-Illuminated
DC Contact Rating
5 A @ 250 V
Head Color
Black
Operating Temperature - Minimum
1 Degrees F
Number of Indicator Lights
0
AC Contact Rating
10 A @ 600 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum
120 V AC/DC
Operating Temperature - Maximum
150 Degrees F
Push Button Style
Extended
Resistance Properties
Oil and Grease Resistant, Watertight
Operator Material
Metal

Description

Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Material Metal
