  15. Non-Illuminated Push Button, 30mm, Epoxy

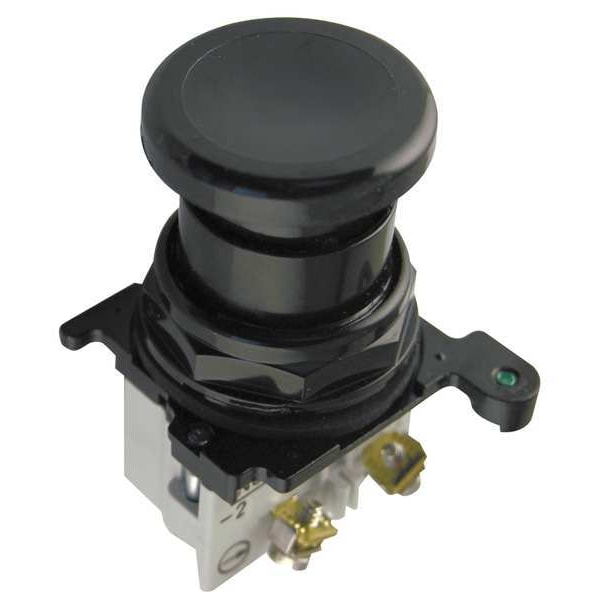

Eaton Non-Illuminated Push Button, 30mm, Epoxy E34LB1-1X - main

Non-Illuminated Push Button, 30mm, Epoxy

  • Mfr # E34LB1-1X

  • Zoro # G5219977

product price: $185.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Black
Basic Material
Metal
Legend
No Legend
Number of Operators
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34LB1-1X
Zoro #
G5219977
UPC #
786680126833
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Mushroom Head Diameter
40 mm
Panel Cutout Diameter
30 mm
Overall Depth
1.63 in
Overall Height
1.78 in
Manufacturer Warranty Length
1 yr

Details

Item
Mushroom Head Push Button
Material
metal
Color
Black
Basic Material
Metal
Legend
No Legend
Number of Operators
1
Type of Operator
40mm Mushroom Head
Action
Momentary
Contact Form
1NO/1NC
Head Material
Epoxy Coated Metal
Bezel
Epoxy Coated Metal Zinc Die Cast
Features
Passed a 600 Hour Salt Spray Test
NEMA Rating
12, 13, 3, 3R, 4, 4X
IP Rating
IP65
Terminal Connection
Screw Clamp
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568
Contact Rating
10A @ 600V AC
Product Type
Push Button Operators
Bezel Material
Epoxy Coated Zinc Die Cast
Operating Temperature - Maximum
150 Degrees F
Operator Illumination
Non-Illuminated
Series
E34
Push Button Style
Mushroom Head
Head Color
Black
Operator Voltage Rating - Maximum
120 V AC/DC
Mechanical Operating Durability
1.00 x 10^7
Operator Material
Metal
Resistance Properties
Chemical Resistant, Corrosion Resistant, Oil and Grease Resistant, Watertight
Operating Temperature - Minimum
1 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V
Number of Indicator Lights
0

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated Metal Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568, Terminal Connection Screw Clamp, Features Passed a 600 Hour Salt Spray Test
