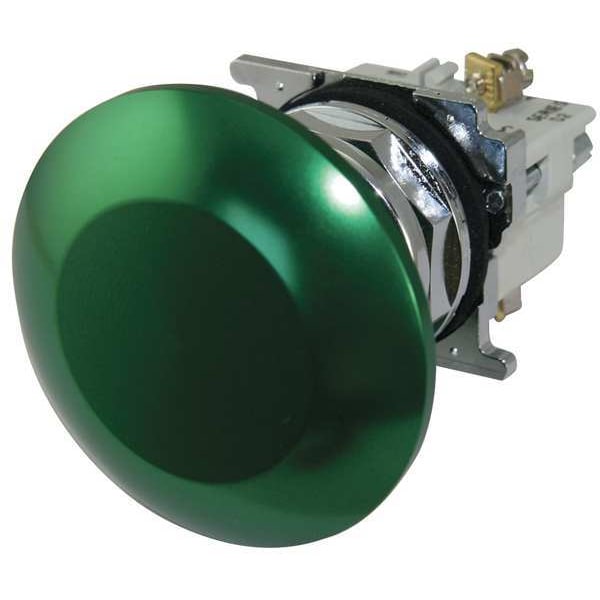

Eaton Non-Illuminated Push Button, 30mm, Green 10250T173-3 - main

Non-Illuminated Push Button, 30mm, Green

  • Mfr # 10250T173-3

  • Zoro # G5230242

product price: $214.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Green
IP Rating
IP65
NEMA Rating
12, 13, 3, 3R, 4, 4X
Action
Momentary
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T173-3
Zoro #
G5230242
UPC #
786680122125
Country of Origin
United States

Dimensions

Size
30 mm
Product Height
3.253 in
Product Width
2.02 in
Product Length/Depth
2.313 in
Panel Cutout Diameter
30 mm
Overall Depth
2.31 in
Manufacturer Warranty Length
1 yr
Overall Height
3.25 in
Overall Width
2.02 in
Mushroom Head Diameter
65 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Green
IP Rating
IP65
NEMA Rating
12, 13, 3, 3R, 4, 4X
Action
Momentary
Basic Material
Metal
Head Material
Metal
Standards
CE, CSA, UL Listed
Bezel
Chrome Plated Zinc Die Cast
Number of Operators
1
Legend
No Legend
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Contact Rating
10A @ 600V AC
Type of Operator
65mm Mushroom Head
Contact Form
2NC
Terminal Connection
Screw Clamp
Product Type
Push Button Operators
Type
Pushbutton
Bezel Material
Chrome Plated Zinc Die Cast
Degree of protection
NEMA 12
Actuator color
Green
Actuator material
Anodized aluminum
Illumination
Non-illuminated
Rating
NEMA 4
Certifications
UL Listed
Compliances
CE Marked
Actuator
Jumbo mushroom
Operating Mode
Momentary
Contact configuration
2 NC
Series
10250T
Bus material
Zinc die cast
Product Name
Eaton 10250T pushbutton
Head Color
Green
Operating Temperature - Maximum
150 Degrees F
Resistance Properties
Oil and Grease Resistant, Watertight
Operator Material
Metal
Operator Voltage Rating - Maximum
120 V AC/DC
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
DC Contact Rating
5 A @ 250 V
Push Button Style
Mushroom Head
Operator Illumination
Non-Illuminated
Number of Indicator Lights
0
AC Contact Rating
10 A @ 600 V
Mechanical Operating Durability
1.00 x 10^7
Operating Temperature - Minimum
1 Degrees F

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 65mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Material Metal
