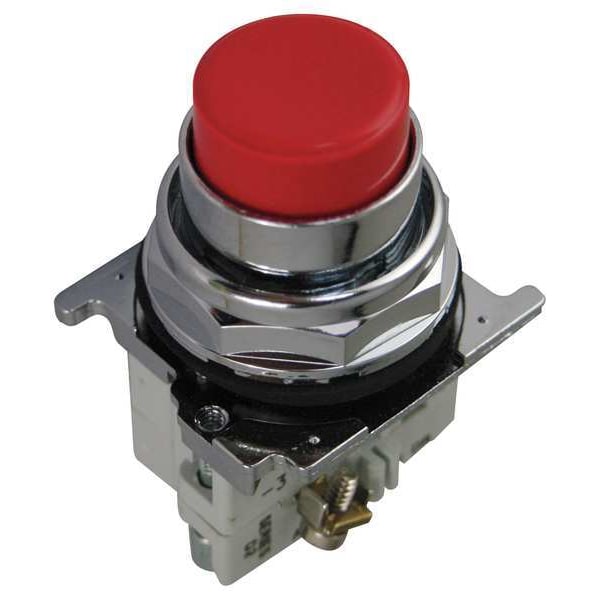

Eaton Non-Illuminated Push Button, 30mm, Metal 10250T25R - main

Non-Illuminated Push Button, 30mm, Metal

  • Mfr # 10250T25R

  • Zoro # G5269765

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Red
Type of Operator
Extended Button
IP Rating
IP65
Contact Form
1NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T25R
Zoro #
G5269765
UPC #
786680122767
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
3.3 in
Product Width
2.1 in
Product Length/Depth
2.4 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Overall Depth
2.4 in
Overall Height
3.3 in
Overall Width
2.1 in

Details

Item
Extended Push Button Operator
Material
metal
Color
Red
Type of Operator
Extended Button
IP Rating
IP65
Contact Form
1NO
Number of Operators
1
Head Material
Metal
Bezel
Chrome Plated Zinc Die Cast
Contact Rating
10A @ 600V AC
Basic Material
Metal
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
Standards
CE, CSA, UL Listed
NEMA Rating
12, 13, 3, 3R, 4, 4X
Legend
No Legend
Action
Momentary
Product Type
Push Button Operators
Type
30.5 mm, Heavy-Duty
Bezel Material
Chrome Plated Zinc Die Cast
Rating
NEMA 4X
Operating Mode
Momentary
Contact configuration
1 NO
Actuator color
Red
Series
10250T
Actuator material
Plastic
Certifications
CSA Certified
Illumination
Non-illuminated
Actuator
Extended
Compliances
CE Marked
Product Name
Eaton 10250T pushbutton
Operating Temperature - Maximum
150 Degrees F
Head Color
Red
Operator Voltage Rating - Maximum
120 V AC/DC
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Resistance Properties
Oil and Grease Resistant, Watertight
Push Button Style
Extended
Operating Temperature - Minimum
1 Degrees F
Operator Material
Metal
Operator Illumination
Non-Illuminated
AC Contact Rating
10 A @ 600 V
Number of Indicator Lights
0
Mechanical Operating Durability
1.00 x 10^7
DC Contact Rating
5 A @ 250 V

Description

Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Material Metal
