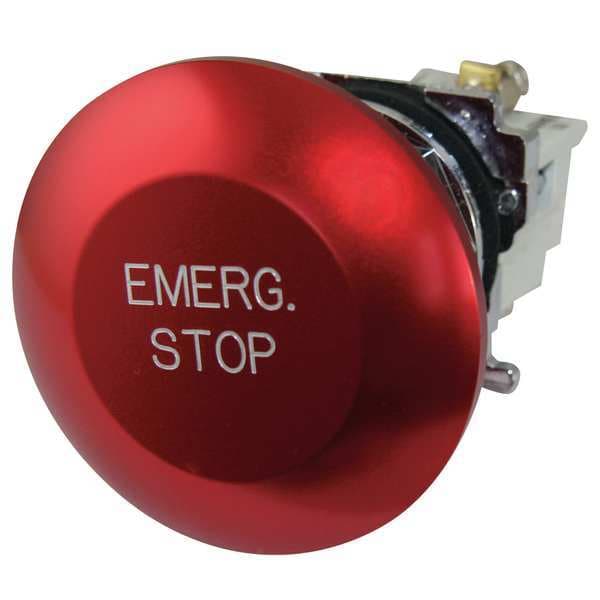

Eaton Non-Illuminated Push Button, Red 10250T29 - main

Non-Illuminated Push Button, Red

  • Mfr # 10250T29

  • Zoro # G5229777

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Red
Type of Operator
65mm Mushroom Head
Action
Momentary
Bezel
Chrome Plated Zinc Die Cast
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T29
Zoro #
G5229777
UPC #
786680122798
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Manufacturer Warranty Length
1 yr
Overall Depth
2.2 in
Mushroom Head Diameter
65 mm
Overall Width
2 in
Panel Cutout Diameter
30 mm
Overall Height
2 in
Product Height
2 in
Product Width
2 in
Product Length/Depth
2.2 in

Details

Item
Mushroom Head Push Button
Material
metal
Color
Red
Type of Operator
65mm Mushroom Head
Action
Momentary
Bezel
Chrome Plated Zinc Die Cast
Head Material
Metal
Legend
Emergency Stop
Basic Material
Metal
Number of Operators
1
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
IP Rating
IP65
Standards
CE, CSA, UL Listed
Contact Rating
10A @ 600V AC
Contact Form
1NC
Legend/Background Color
White/Red
Terminal Connection
Screw Clamp
NEMA Rating
12, 13, 3, 3R, 4, 4X
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Type
Pushbutton
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
120 V AC/DC
Head Color
Red
Operating Temperature - Maximum
150 Degrees F
Legend Background Color
Red
Push Button Style
Mushroom Head
DC Contact Rating
5 A @ 250 V
Operator Illumination
Non-Illuminated
Mechanical Operating Durability
1.00 x 10^7
AC Contact Rating
10 A @ 600 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Legend Color
White
Operating Temperature - Minimum
1 Degrees F
Resistance Properties
Oil and Grease Resistant, Watertight
Operator Material
Metal
Series
10250T
Actuator color
Red
Operating Mode
Momentary
Product Name
Eaton 10250T pushbutton
Rating
NEMA 12
Contact configuration
1 NC
Illumination
Non-illuminated
Bus material
Zinc die cast
Inscription
EMERGENCY STOP
Certifications
CSA Certified
Actuator
Jumbo mushroom
Compliances
CE Marked
Degree of protection
NEMA 3R
Actuator material
Anodized aluminum

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 65mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend Emergency Stop, Legend/Background Color White/Red, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
