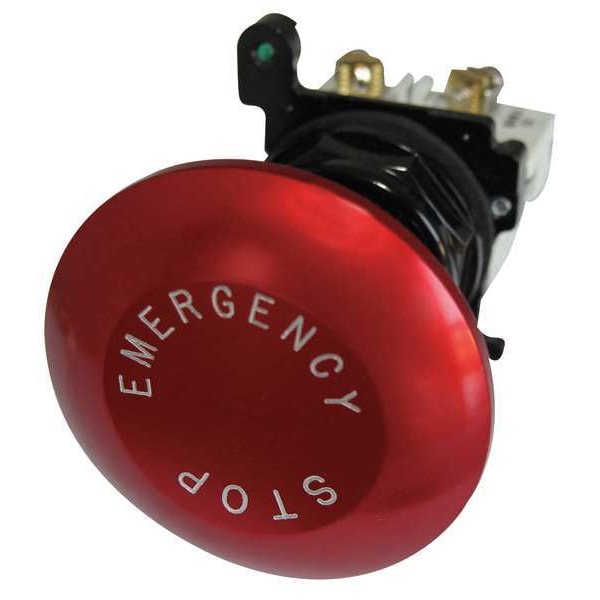

Eaton Non-Illuminated Push Button, Red E34GDBJ2N8-1X - main

Non-Illuminated Push Button, Red

  • Mfr # E34GDBJ2N8-1X

  • Zoro # G5219961

product price: $249.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Red
Bezel
Epoxy Coated Metal Zinc Die Cast
IP Rating
IP65
Type of Operator
40mm Mushroom Head
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34GDBJ2N8-1X
Zoro #
G5219961
UPC #
786680121234
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
1 in
Product Length/Depth
1 in
Product Width
1 in
Product Diameter
3.79 in
Mushroom Head Diameter
40 mm
Manufacturer Warranty Length
1 yr
Overall Depth
1 in
Overall Width
1 in
Overall Height
1 in
Panel Cutout Diameter
30 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Red
Bezel
Epoxy Coated Metal Zinc Die Cast
IP Rating
IP65
Type of Operator
40mm Mushroom Head
Contact Form
1NO/1NC
Legend/Background Color
White/Red
NEMA Rating
12, 13, 3, 3R, 4, 4X
Standards
CE, CSA, FDA 3-A, UL Listed
Terminal Connection
Screw Clamp
Action
Maintained/Maintained
Contact Rating
10A @ 600V AC
Features
Factory Assembled
Legend
Emergency Stop
Number of Operators
1
Basic Material
Metal
Head Material
Epoxy Coated Metal
Product Type
Push Button Operators
Type
30.5 mm, Corrosion Resistant
Bezel Material
Epoxy Coated Zinc Die Cast
Operating Mode
Pull: maintained
Rating
NEMA 4
Series
E34
Actuator color
Red
Illumination
Non-illuminated
Certifications
UL Listed
Actuator
Standard
Bus material
Anodized aluminum
Number of positions
2
Contact configuration
1 NO-1 NC
Compliances
CE Marked
Product Name
Eaton E34 pushbutton
Number of Indicator Lights
0
Legend Color
White
Operating Temperature - Minimum
1 Degrees F
DC Contact Rating
5 A @ 250 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Operator Illumination
Non-Illuminated
Resistance Properties
Corrosion Resistant
Operator Material
Metal
Legend Background Color
Red
Operator Voltage Rating - Maximum
120 V AC/DC
Maintained Action Release
Push/Pull
Head Color
Red
Push Button Style
Mushroom Head
Operating Temperature - Maximum
150 Degrees F
Mechanical Operating Durability
1.00 x 10^7
AC Contact Rating
10 A @ 600 V

Description

Mushroom Head Push Button, 30 mm, Maintained/Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated Metal Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend Emergency Stop, Legend/Background Color White/Red, Standards CE, CSA, FDA 3-A, UL Listed, Terminal Connection Screw Clamp, Features Factory Assembled, Material Metal
