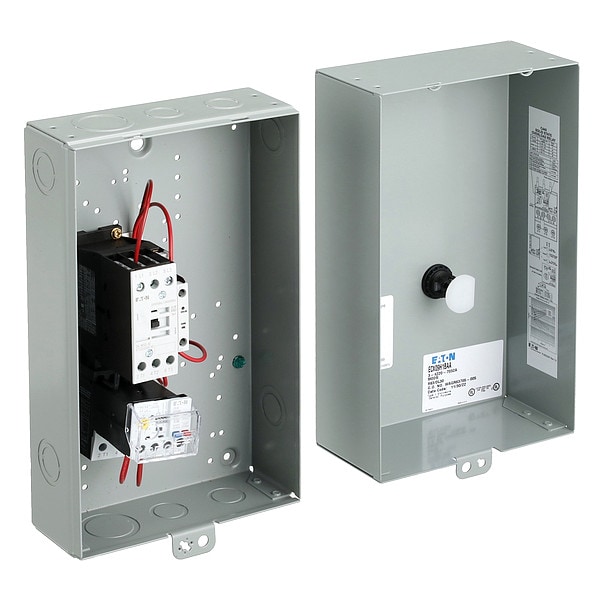

Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 120V AC, 3 Poles, 1NO/1NC

  • Mfr # ECX09H1AAA-R63/D

  • Zoro # G1073913

product price:
$
649.99
/ea
Free Shipping & Returns

Key Features

Overload Relay Amp Setting
9.0 to 45.0
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
HP @ 3 Phase - 240V
10 hp
HP @ 3 Phase - 480V
20 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ECX09H1AAA-R63/D
Zoro #
G1073913
UPC #
-
Country of Origin
Mexico
Item
IEC Magnetic Motor Starter
Overload Relay Amp Setting
9.0 to 45.0
Coil Volts
120V AC
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
HP @ 3 Phase - 240V
10 hp
HP @ 3 Phase - 480V
20 hp
HP @ 3 Phase - 575V
30 hp
HP @ 3 Phase - 208V
10 hp
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
5 hp
Action
Nonreversing
Number of Poles
3
Amps AC
32.0 A
Hz
50/60
Standards
cUL Listed, UL Listed
NEMA Enclosure Rating
1
Current AC
32 A
Horsepower @ Three Phase - 600V AC
30 hp
Auxiliary Contact Module Capacity
4
Starter Style
IEC
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
20 hp
Maximum Overload Relay Current Setting
45 A
Mounting Style
Surface
Trip Class
10A/10/20/30
Maximum Voltage Rating
690V AC
Series
XT
IP Rating
IP23
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Overload Relay Current Setting
9 A
Horsepower @ Three Phase - 208V AC
10 hp
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
5 hp
Includes Auxiliary Contacts
Yes
Overload Protection Type
Electronic
Phase
Three
Reversing Capability
Non-Reversing
Coil Voltage
120V AC
Number of Auxillary Contacts
2

Description

IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 45 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 9 A, Trip Class 10A/10/20/30, Series XT, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 120V AC, Horsepower @ Three Phase - 600V AC 30 hp
