Shop SCHNEIDER ELECTRIC

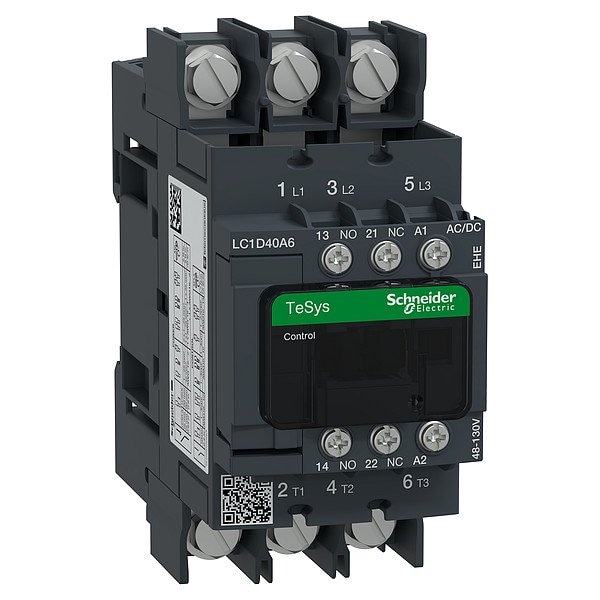

CONT 3P 40A AC3 NO+NC 48-130V ACDC LUGS

  • Mfr # LC1D40A6EHE
  • Zoro # G622824418
product price:
$
489.99
/ea
Free Shipping & Returns

Key Features

Series
Tesys Deca
Overall Depth
4.72 in
Full Load Current - Resistive
Not Rated
Number of Poles
3
Full Load Current - Inductive
40 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D40A6EHE
Zoro #
G622824418
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Depth
4.72 in
Overall Width
2.17 in
Overall Height
4.8 in

Details

Series
Tesys Deca
Full Load Current - Resistive
Not Rated
Number of Poles
3
Full Load Current - Inductive
40 A
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Embedded Surge Suppressor
Yes
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Terminal Connection Type
Box Lugs
Phase
Three
Mechanical Operating Durability
6,000,000
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Maximum Operating Temperature
140 Degrees F
Auxiliary Contact Form
1NO/1NC
Item
IEC Contactor
Reversing Capability
Non-Reversing
Maximum Voltage Rating
480V AC
Horsepower @ Three Phase - 480V AC
30 hp
Coil Voltage
48V AC to 130V AC, 48V DC to 130V DC
Number of Normally Open Main Contacts
3
Minimum Operating Temperature
-40 Degrees F
Frequency
50/60 Hz
Number of Auxillary Contacts
2
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
500,000, 850,000

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 480V AC 30 hp
