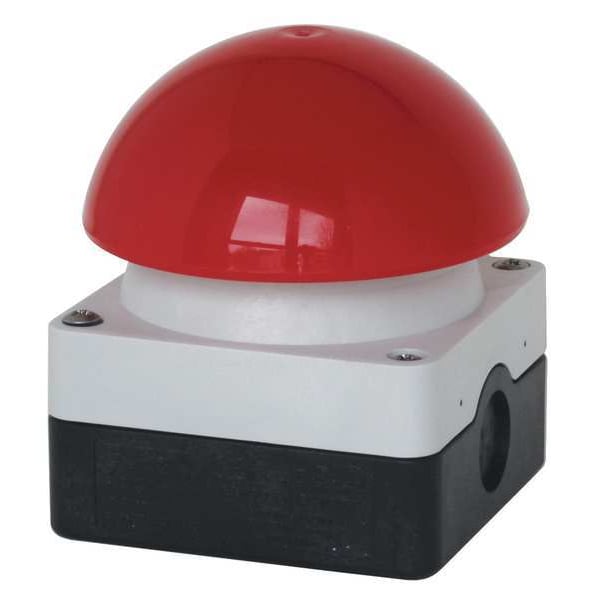

Eaton Palm Swtch Cntrl Statn, 1NO/1NC, No Legend FAK-R-KC11-I - main

Palm Swtch Cntrl Statn, 1NO/1NC, No Legend

  • Mfr # FAK-R-KC11-I

  • Zoro # G6218843

product price: $224.99
/ea
Free Shipping & Returns

Key Features

Action
Momentary
Size
22 mm
Features
All NC contact blocks are positively driven contact.
Illuminated / Non-Illuminated
Non-illuminated
NEMA Rating
1, 13, 2, 3, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FAK-R-KC11-I
Zoro #
G6218843
UPC #
786685899473
Country of Origin
China

Dimensions

Size
22 mm
Width
3.35 in
Height
6.78 IN
Length
4.77 IN
Product Height
4 in
Product Length/Depth
3.75 in
Product Width
3.75 in
Overall Depth
3.75 in
Panel Cutout Diameter
22 mm
Overall Height
4 in
Overall Width
3.75 in

Details

Action
Momentary
Features
All NC contact blocks are positively driven contact.
Illuminated / Non-Illuminated
Non-illuminated
NEMA Rating
1, 13, 2, 3, 4, 4X
Number of Pilot Lights
0
Type of Operator
Palm Switch
Contact Form
1NO/1NC
Series
M22
Hub Style
Feed-Thru
Legend
No Legend
Number of Operators
1
Standards
CE, CSA, CSA No.3211-03, CSA No.012528, CSA C22.2 No.14-05, CSA C22.2 No.94-91, IEC/EN 60947-5, IEC/EN 60947-5-1, UL 508, UL NKCR, UL E29184, UL Listed, VDE 0660
For Use With
Palm switch
Item
Palm Switch Control Station
Contact Rating
10A @ 600V AC, 5A @ 24V DC
Mechanical Interlock
No
IP Rating
IP66, IP67, IP69K
Enclosure Color
Red
Enclosure Material
Plastic
NEMA Contact Rating Designation
A600
Operator Color
Red
Mounting Style
Surface
Number of Speeds
1
DC Contact Rating
5 A @ 24 V
AC Contact Rating
10 A @ 600 V
Operating Cycles
1 million
Certifications
CSA Certified;CCC Marked;Lloyd's Register Certified
Compliances
GoST-R;CE Marked;Bureau Veritas
Environmental Rating
IP67, IP69K, NEMA 4X, NEMA 13
Actuator
Mushroom head
Contact Configuration
1 NO-1 NC
Product Name
Eaton E22 pushbutton
Base
Black
Operating Temperature - Minimum
-13 Degrees F
Operator Configuration
Palm Switch
Mounting Orientation
Horizontal, Vertical
Resistance Properties
Corrosion Resistant, Shock Resistant, UV/Sunlight Resistant
Product Type
Control Station
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
131 Degrees F
Includes Mechanical Interlock
No Mechanical Interlock Included.

Description

Palm Switch Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend No Legend, Type of Operator Palm Switch, Action Momentary, Operator Color Red, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, 13, 2, 3, 4, 4X, Contact Rating 10A @ 600V AC, 5A @ 24V DC, NEMA Contact Rating Designation A600, IP Rating IP66, IP67, IP69K, Enclosure Material Plastic, Enclosure Color Red
