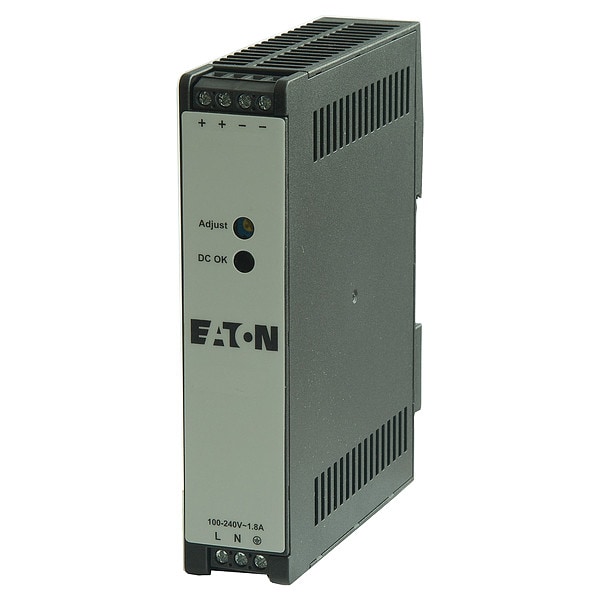

Eaton Power Supply, 100/240V AC, 12V DC, 60 W, 5 A, DIN Rail PSG60E12SPC - main

Power Supply, 100/240V AC, 12V DC, 60 W, 5 A, DIN Rail

  • Mfr # PSG60E12SPC

  • Zoro # G811208982

product price: $119.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
12V DC
Output Power - Rated
60 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG60E12SPC
Zoro #
G811208982
UPC #
-
Country of Origin
India

Dimensions

Overall Height
1.693 in
Overall Width
4.323 in
Overall Depth
4.043 in
Width
1.693 in
Depth
4.043 in
Height
4.323 in

Details

Item
Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
12V DC
Output Power - Rated
60 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Phase - Electrical
Single
Series
PSG
Style
Switching
Case Material
Plastic Case
Hz
50/60 Hz
Status Indicator
Green LED
Standards
CE, CSA, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant, UL 508
Output Voltage
12V DC
Power Rating
60W
IP Rating
IP20
Certifications
cUL Certified; EN Listed; CSA Certified; IEC Rated; UL 508; cULus/UL 60950-1
Compliances
CE Marked; German Safety
Operating Temperature - Minimum
-13 Degrees F
Mean Time Between Failures (MTBF)
8,000,000 hr
Wire Connection Type
Screw Terminals
Manufacturer Warranty
3 yr
Operating Temperature - Maximum
176 Degrees F

Description

DC Power Supply, Input Voltage 100 to 240V AC, Mounting DIN Rail, Series PSG, IP Rating IP20, Status Indicator Green LED, Standards CE, CSA, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant, UL 508
