  15. Push Button operator, 22 mm, Black
Eaton Push Button operator, 22 mm, Black M22M-DH-S - main

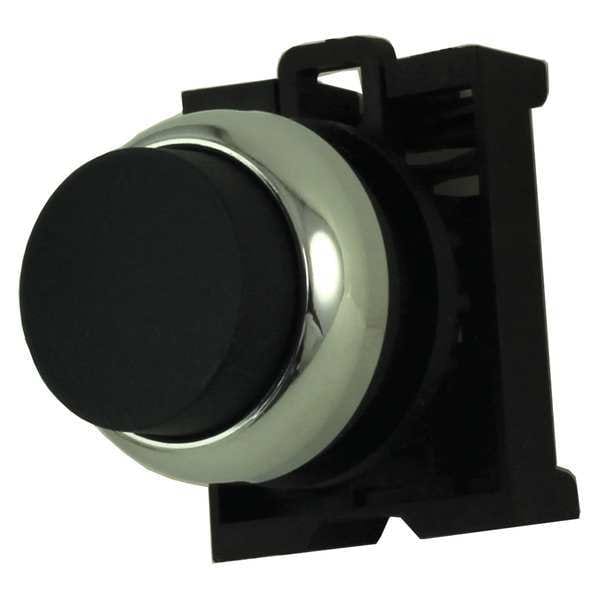

Push Button operator, 22 mm, Black

  • Mfr # M22M-DH-S

  • Zoro # G6194167

product price: $12.99
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22M-DH-S
Zoro #
G6194167
UPC #
786685898612
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Overall Depth
1.5 in
Manufacturer Warranty Length
1 yr
Overall Width
1.5 in
Overall Height
1.5 in
Product Length/Depth
1.5 in
Product Height
1.5 in
Product Width
1.5 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
IP Rating
IP67, IP69K
NEMA Rating
1, 13, 2, 3, 4, 4X
Bezel Material
Metal
Includes
Metal Bezel
Color
Black
Type of Operator
Extended Button
Basic Material
Metal
Number of Operators
1
Bezel
Metal
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Lamp Type
LED
Type
Modular pushbutton
Series
M22
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant
Operator Material
Metal
NEMA Enclosure Rating
13, 4X
Hazardous Location Specification
Not Rated
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Environmental rating
IP67, IP69K (IP66 key-release)
Compliances
CE Marked
Product Name
Eaton M22 modular pushbutton
Certifications
CCC Marked
Illumination
Non-illuminated
Operating mode
Momentary

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Black, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Includes Metal Bezel, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
