Eaton

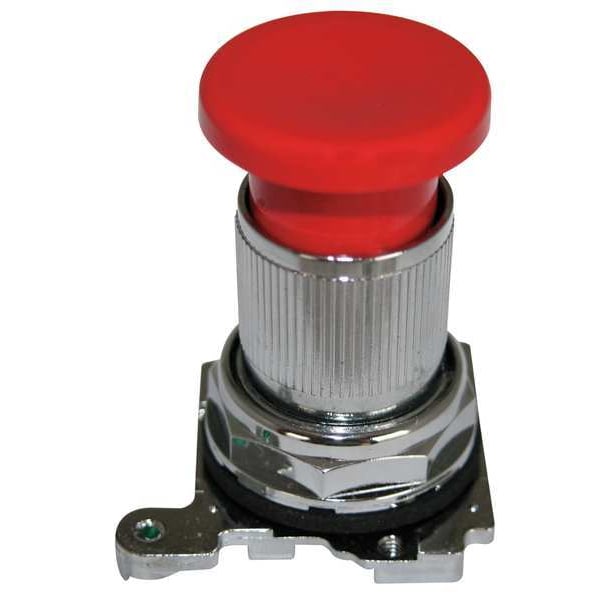

Pushbutton Operator, Twist Release, Red

product price: $101.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Features Drainage Holes, Grounding Nibs, One Piece Body
  • Color Red
  • Type of Operator 30mm dia Mushroom Head
  • NEMA Rating 12, 13, 3, 3R, 4, 4X
See all product information

Product Information

Dimensions

Size 30 mm
Product Height 3.2 in
Product Length/Depth 2.4 in
Product Width 2.1 in
Panel Cutout Diameter 30 mm
Overall Depth 2.4 in
Overall Height 3.2 in
Overall Width 2.1 in
Manufacturer Warranty Length 1 yr
Mushroom Head Diameter 40 mm

Details

Item Emergency Stop Push Button
Features Drainage Holes, Grounding Nibs, One Piece Body
Color Red
Type of Operator 30mm dia Mushroom Head
NEMA Rating 12, 13, 3, 3R, 4, 4X
Head Material Plastic
Action Maintained
Bezel Material Zinc Die Cast
Standards CE, CSA, UL Listed
Basic Material Metal
IP Rating IP65
Product Type Emergency Stop Push Buttons
Number of Operators 1
Bezel Chrome
Type Pushbutton
Terminal Connection Screw Clamp
Actuator Mushroom, auto-latch
Actuator color Red
Contact configuration 2 NO
Bus material Zinc die cast
Compliances CE Marked
Operator Latch-in, twist-to-release
Degree of protection NEMA 13
Operating Mode Twist-to-release
Series 10250T
Illumination Non-illuminated
Certifications CSA Certified
Product Name Eaton 10250T pushbutton
NEMA Enclosure Rating 12, 13, 3, 3R, 4, 4X
Hazardous Location Specification Class I, Div 2, Group B, C, D
Push Button Style Mushroom Head
Operating Temperature - Minimum 1 Degrees F
Number of Indicator Lights 0
Head Color Red
Operating Temperature - Maximum 150 Degrees F
Operator Illumination Non-Illuminated
Operator Material Polymer
Maintained Action Release Twist

Description

Emergency Stop Push Button, 30 mm, Maintained, Type of Operator 30mm dia Mushroom Head, Basic Material Metal, Head Material Plastic, Bezel Material Zinc Die Cast, Color Red, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend Not Applicable, Standards CE, CSA, UL Listed, Features Drainage Holes, Grounding Nibs, One Piece Body
