  15. Raised Indicator Light, White, 240VAC

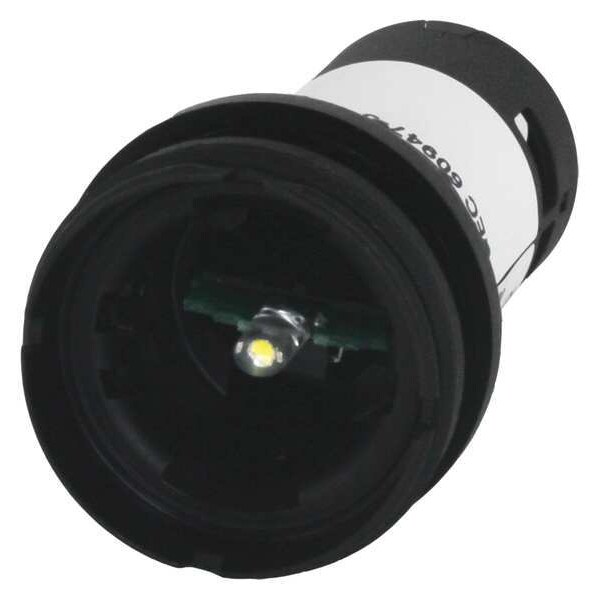

Eaton Raised Indicator Light, White, 240VAC C22-L-XW-230 - main

Raised Indicator Light, White, 240VAC

  • Mfr # C22-L-XW-230

  • Zoro # G7451762

product price: $39.19
/ea

Key Features

Voltage
230V AC
Color
White
Material of Construction
Polycarbonate
Lamp Type
LED
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C22-L-XW-230
Zoro #
G7451762
UPC #
786685896656
Country of Origin
Germany

Dimensions

Size
22mm Mounting dia
Panel Thickness
0.930 in
Height
2.2 in
Length
1.17 in
Width
1.17 in
Overall Width
1.17 in
Overall Depth
1.17 in
Manufacturer Warranty Length
18 mo
Overall Height
2.2 in
Panel Cutout Diameter
22 mm

Details

Item
Flush Panel Light
Voltage
230V AC
Color
White
Material of Construction
Polycarbonate
Lamp Type
LED
Shape
Round
Terminal Connection
Screw
Electrical Connection
Terminal Clamp
Bezel
Plastic
Lamp Module Type
Full Voltage
Basic Material
Plastic
Current Drawn
20 mA
NEMA Rating
13, 4X
Standards
CSA, EN 60947, IEC 60947, UL Listed
Average Life
100,000 hr
IP Rating
IP67, IP69K
Body Material
Polycarbonate
Type
Indicating Light
Voltage Rating
230 V
Certifications
EN 60947;UL Listed;CSA Certified;IEC 60947
Button Color
White without lens
Compliances
DIN VDE 0600
Illumination
Illuminated
Series
C22
Product Name
Eaton C22 compact pushbutton
Head Style
Flush
Includes Lamp Module
Lamp Module Included
Voltage Rating - Maximum
230 V AC
Lamp Color
White
NEMA Enclosure Rating
13, 4X
Includes Lens
No Lens Included

Description

Flush Panel Light, LED, Polycarbonate, White, Voltage 230V AC, Size 22mm Mounting dia, Electrical Connection Terminal Clamp, Shape Round, Current Drawn 20 mA, Average Life 100,000 hr, NEMA Rating 13, 4X, IP Rating IP67, IP69K, Panel Thickness 0.930 in, Standards CSA, EN 60947, IEC 60947, UL Listed
