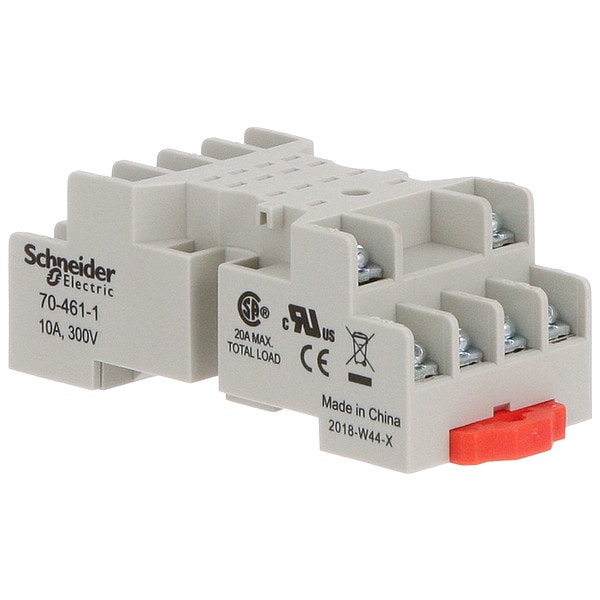

Rlay Scket, Standrd, Square, 14 Pin, 2.71" L

product price: $9.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Socket Type - Relay Elevator
  • Base Style - Relay Socket Square
  • Contact Form - Relay Socket 4PDT
  • Mounting - Relay DIN Rail
  • Electrical Connection - Relay Socket Screw Clamp
See all product information

Product Information

Dimensions

Length 2.71"
Width - Relay Socket 1.2 in
Depth 2.52 in
Depth - Relay Socket 2.71 in
Width 1.21 in
Height - Relay Socket 1 in
Flat Pin Width 0.09 in
Height 1 in

Details

Item - Relay Relay Socket
Socket Type - Relay Elevator
Base Style - Relay Socket Square
Contact Form - Relay Socket 4PDT
Mounting - Relay DIN Rail
Electrical Connection - Relay Socket Screw Clamp
Number of Pins - Relay 14
Contact Rating - Relay Socket 10A @ 300V AC
Color White
Contact Rating 10A @ 300VAC
Item Relay Socket
Terminals Screw Clamp
Socket Type Standard, Finger Safe
Status Indicator None
Number of Pins 14
Mounting Din Rail
Standards CE Certified, CSA Certified, UL Listed
Socket Code G
Voltage 300VAC
Socket Style Square
Socket Design Standard
Socket Mounting Style DIN-Rail
Maximum Operating Temperature 158 Degrees F
IP Rating IP20
Contact Terminal Arrangement Mixed
Weight 1.76 oz
Compatible Relays 792 Series
Finger Safe Yes
Socket Code Configurator Square / 14 / 0.09 in
Electrical Connection Screw Clamp
Contact Form 4PDT
Number of Terminals 14
Minimum Operating Temperature -40 Degrees F
Contact Rating (AC) 10 A @ 300V
Base Style Square
Mounting Style DIN Rail
Electrical Connection Type Screw
Pin Shape Flat
Current Rating 10 A
Product Compatibility relay 792XDX; relay 782XDXH
Contact Composition 4 C/O
Product Range Harmony Electromechanical Relays
Ambient Air Temperature for Storage -40 to 221°F (-40 to 105°C)
Product Certifications UL; CSA; CE
Shape of Screw Head Combination roundhead
Fixing Mode By screws, M3 panel
Product Type Socket
Ambient Air Temperature for Operation -40 to 158°F (-40 to 70°C)
Flame Retardance UL94-V0
Tightening Torque Chassis 0.8 N.m, AWG 16...AWG 14, copper; Screw < 0.8 N.m
Connections Terminals Panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 solid for output; Panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 stranded for output
[Ue] rated operational voltage 300 V

Description

Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Screw Clamp, Flat Pin Width 0.09 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 792 Series, Contact Rating (AC) 10 A @ 300V, Depth 2.52 in, Height 1 in, IP Rating IP20, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F
