  13. Raised Indicator Light, Yellow, 120VAC
Shop All Indicator Lights
Eaton

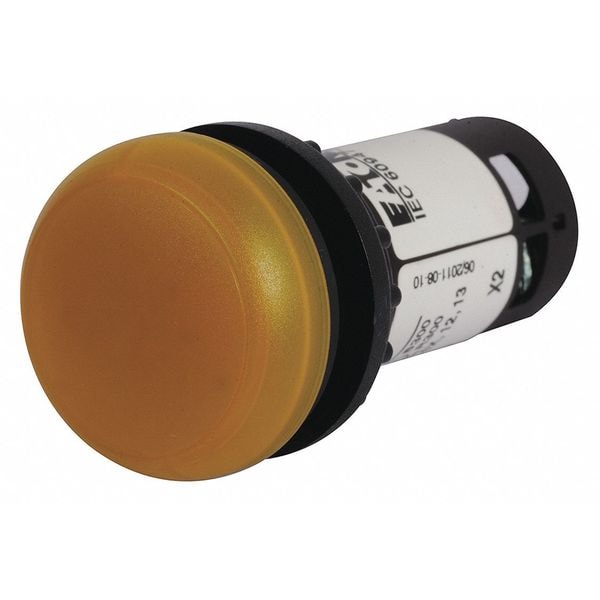

Raised Indicator Light, Yellow, 120VAC

product price: $36.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Yellow
  • Material of Construction Polycarbonate
  • Lamp Type LED
  • Shape Round
See all product information

Product Information

Dimensions

Size 22mm Mounting dia
Height 2.2 in
Width 1.17 in
Length 1.17 in
Overall Width 1.17 in
Overall Depth 1.17 in
Overall Height 2.2 in
Panel Cutout Diameter 22 mm
Manufacturer Warranty Length 18 mo

Details

Item Flush Panel Light
Voltage 120V AC
Color Yellow
Material of Construction Polycarbonate
Lamp Type LED
Shape Round
Terminal Connection Screw
Electrical Connection Terminal Clamp
Bezel Plastic
Lamp Module Type Full Voltage
Basic Material Plastic
Standards CSA, EN 60947, IEC-60947, UL Listed
Current Drawn 20 mA
IP Rating IP67, IP69K
Average Life 100,000 hr
Panel Thickness 0.930 in
NEMA Rating 13, 4X
Body Material Polycarbonate
Type Indicating Light
Voltage Rating 120 V
Series C22
Product Name Eaton C22 compact pushbutton
Compliances DIN VDE 0600
Illumination Illuminated
Certifications UL Listed;EN 60947;IEC 60947;CSA Certified
Head Style Flush
Includes Lens Lens Included
Voltage Rating - Maximum 120 V AC
Includes Lamp Module Lamp Module Included
Lamp Color White
NEMA Enclosure Rating 13, 4X
Lens Color Yellow

Description

Flush Panel Light, LED, Polycarbonate, Yellow, Voltage 120V AC, Size 22mm Mounting dia, Electrical Connection Terminal Clamp, Shape Round, Current Drawn 20 mA, Average Life 100,000 hr, NEMA Rating 13, 4X, IP Rating IP67, IP69K, Panel Thickness 0.930 in, Standards CSA, EN 60947, IEC-60947, UL Listed
