  11. Redundant DC Power Supply, 24/48V DC, 24V DC, 960 W, 20 A, DIN Rail

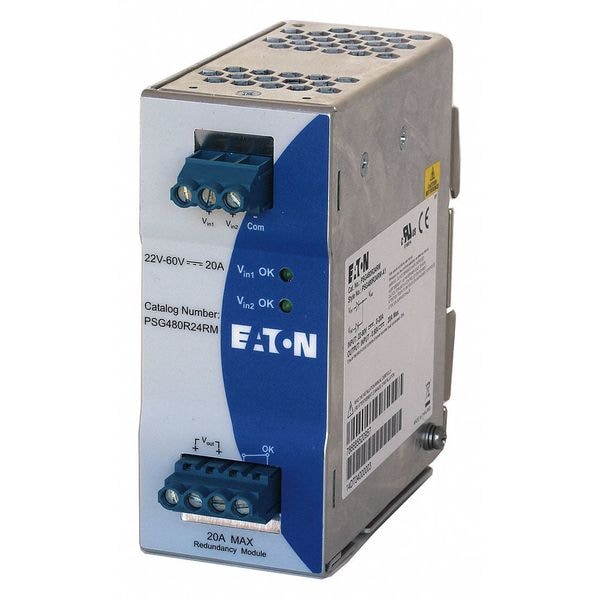

Eaton Redundant DC Power Supply, 24/48V DC, 24V DC, 960 W, 20 A, DIN Rail PSG480R24RM - main

Redundant DC Power Supply, 24/48V DC, 24V DC, 960 W, 20 A, DIN Rail

  • Mfr # PSG480R24RM

  • Zoro # G8569452

product price: $105.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
24/48V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
20 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG480R24RM
Zoro #
G8569452
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
1.97 in
Overall Width
4.8 in
Overall Depth
4.76 in
Height
4.8 in
Depth
4.76 in
Width
1.97 in
Wire Size - Maximum
10 AWG
Wire Size - Minimum
12 AWG

Details

Item
Redundant DC Power Supply
Input Voltage
24/48V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
20 A
Mounting
DIN Rail
Housing Material
Aluminum
Phase
Single
Power Supply Style
Switching
Output Noise
Less Than 50mV
Case Material
Aluminum Case
Hz
50/60 Hz
Status Indicator
LED/DC OK Signal
Operating Temp. Range
-20 to 80°C
Series
PSG
Phase - Electrical
Single
Standards
CE, CSA C22.2, EN, IEC, RoHS, UL 508
Output Amps
20A
Style
Switching
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Peak Amps
20
IP Rating
IP20
Hold Up Time
Greater Than 22 msec
Output Voltage
24V DC
Power Rating
480W
Terminals
Finger-safe
Frequency Rating
47-63 Hz
Certifications
UL 508;CSA Std. C22.2;IEC Rated;EN Listed
Compliances
CE Marked
Enclosure Color
Aluminum
Current - Inrush
25 A
Manufacturer Warranty
3 yr
Operating Temperature - Maximum
176 Degrees F
NEMA Enclosure Rating
1
Special Features
Finger Safe, Overvoltage Protection
Mean Time Between Failures (MTBF)
800,000 hr
Current - Peak
20 A
Operating Temperature - Minimum
-40 Degrees F

Description

DC Power Supply, Input Voltage 24V DC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 4.8 in, Width 1.97 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 20, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
