  11. Redundant DC Power Supply, 24/48V DC, 24V DC, 960 W, 40 A, DIN Rail

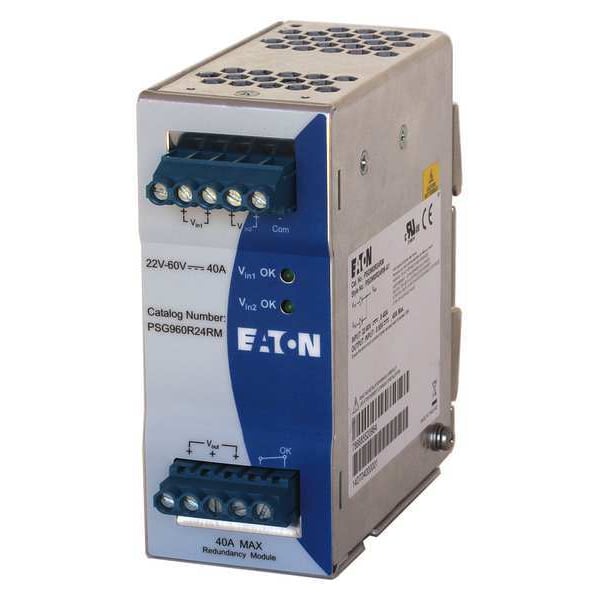

Eaton Redundant DC Power Supply, 24/48V DC, 24V DC, 960 W, 40 A, DIN Rail PSG960R24RM - main

Redundant DC Power Supply, 24/48V DC, 24V DC, 960 W, 40 A, DIN Rail

  • Mfr # PSG960R24RM

  • Zoro # G8569531

product price: $139.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
24/48V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG960R24RM
Zoro #
G8569531
UPC #
786685878447
Country of Origin
Thailand

Dimensions

Overall Height
1.97 in
Overall Width
4.8 in
Overall Depth
4.76 in
Depth
4.76 in
Width
1.97 in
Height
4.8 in
Wire Size - Minimum
12 AWG
Wire Size - Maximum
10 AWG

Details

Item
Redundant DC Power Supply
Input Voltage
24/48V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
Housing Material
Aluminum
Phase
Single
Power Supply Style
Switching
Power Rating
960W
Status Indicator
LED/DC OK Signal
Operating Temp. Range
-20 to 80°C
Series
PSG
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Output Voltage
24V DC
IP Rating
IP20
Hz
50/60 Hz
Phase - Electrical
Single
Output Noise
Less Than 50mV
Peak Amps
40
Output Amps
40A
Style
Switching
Hold Up Time
Greater Than 22 msec
Case Material
Aluminum Case
Standards
CE, CSA C22.2, EN, IEC, RoHS, UL 508
Frequency Rating
47-63 Hz
Enclosure Color
Aluminum
Terminals
Finger-safe
Certifications
UL 508;CSA Std. C22.2;EN Listed;IEC Rated
Compliances
CE Marked
NEMA Enclosure Rating
1
Operating Temperature - Maximum
176 Degrees F
Mean Time Between Failures (MTBF)
800,000 hr
Manufacturer Warranty
3 yr
Current - Peak
40 A
Special Features
Finger Safe, Overvoltage Protection
Operating Temperature - Minimum
-40 Degrees F
Current - Inrush
15 A

Description

DC Power Supply, Input Voltage 24V DC, Output Voltage 24V DC, Power Rating 960W, Output Amps 40, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 4.8 in, Width 1.97 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 40, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
