Shop EATON

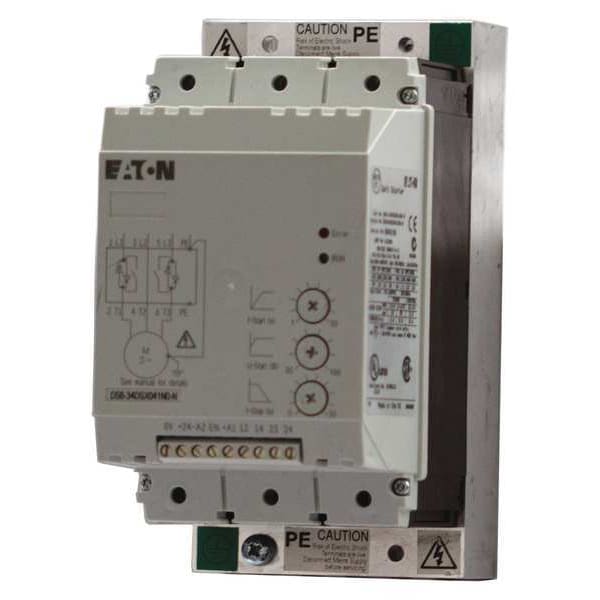

Soft Start Controller, 240/480VAC, 12A

  • Mfr # DS7-342SX012N0-N

  • Zoro # G9512045

product price:
$
411.99
/ea
Free Shipping & Returns

Key Features

Frequency
60/50 Hz
Height
5.12 in
With Bypass / No Bypass
No Bypass
Output Current
11 A
Protects
Motors and Critical Loads
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DS7-342SX012N0-N
Zoro #
G9512045
UPC #
786685457673
Country of Origin
United Kingdom
Frequency
60/50 Hz
With Bypass / No Bypass
No Bypass
Output Current
11 A
Protects
Motors and Critical Loads
Inputs/Outputs
2 Relay Output
Output Voltage
480V AC
Control Voltage
120-230V AC
Includes
2-Phase Control Soft Starter with FLA 12A
Stop Time
0 to 30 sec
HP @ 3 Phase - 240V
5 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 480V
7 1/2 hp
IP Rating
20
Starting Torque
30% to 80%
Ramp Time
1 to 30 sec.
Phase
Three
Display
None
Enclosure Rating
NEMA 1
Item
Soft Start
Start Type
Reduced Voltage Starting, Torque Limiting on Start-Up
Application
Constant and Variable Torque
Standards
CSA22.2-14, IEC/EN 60947-4-2, UL 508
Input Voltage
480V AC
HP @ 3 Phase - 460V
7 1/2 hp
HP @ 3 Phase - 230V
3 hp
Function Type
Start/Stop
Output Power
3 hp @ 3 Phase, 200V AC, 3 hp @ 3 Phase, 240V AC, 7 1/2 hp @ 3 Phase, 480V AC
Type
Dial Control
Ramp Time - Minimum
1 sec
Output Power @ Three-Phase - 208V
3 hp
Output Power @ Single-Phase - 240V
3 hp
Stop Time - Maximum
30 sec
Output Power @ Three-Phase - 240V
5 hp
Product Type
Soft Start
Stop Time - Minimum
0 sec
Output Power @ Three-Phase - 460V
7 1/2 hp
Number of Outputs - Relay
2
Bypass Design
No Bypass
Output Power @ Three-Phase - 230V
3 hp
Output Power @ Single-Phase - 230V
3 hp
Ramp Time - Maximum
30 sec
Output Power @ Three-Phase - 480V
7 1/2 hp

Description

Soft Start, Input Voltage 480V AC, Output Current 11 A, Output Voltage 480V AC, 3 hp @ 3 Phase, 200V AC, 3 hp @ 3 Phase, 240V AC, 7 1/2 hp @ 3 Phase, 480V AC, Control Voltage 120-230V AC, NEMA 1
