Shop LEESON

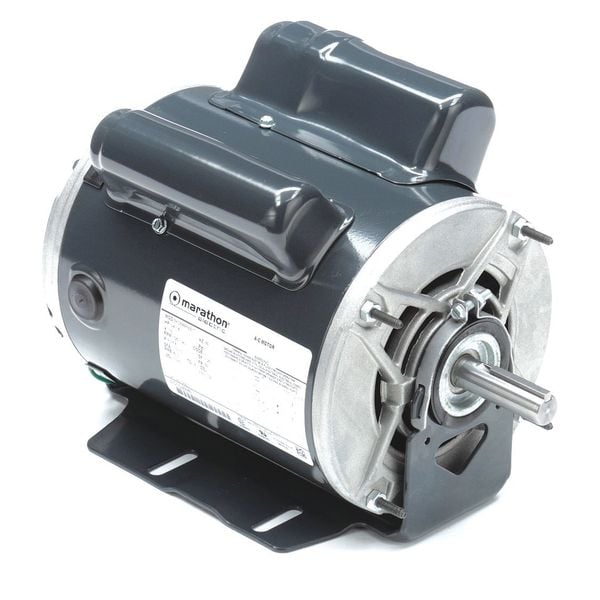

Capacitor-Start/Run Direct Drive Blower Motor, 1/4 to 3/4 HP, 115V AC Voltage, 56 Frame

  • Mfr # 5KCR49PN3011

  • Zoro # G7542656

product price:
$
585.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
1/4 to 3/4
Voltage
115V AC
Frame
56
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KCR49PN3011
Zoro #
G7542656
UPC #
-
Country of Origin
Multiple
Item
Fan and Blower Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
1/4 to 3/4
Voltage
115V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.25
No. of Speeds
2
Motor Application
Blower; Fan
Nameplate RPM
1725/1140 rpm
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified, UL Listed
Duty
Continuous
RPM Group
1701-1800
Inverter Rated
Not Inverter Rated
Hz
60 Hz
Motor Bearings
Ball
Full Load Amps
9.0/6.4 A
Max. Ambient Temp.
40 Degrees C
Phase
Single
Frame Material
Steel
Nominal Efficiency
70 %
Ins. Class
B
Usable @ 208V
Not Usable at 208V
Weight
31 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Capacitor Required
Capacitor Included
Application
Fan/Blower
Full Load Current @ 60 Hz
9.0/6.4 A
Drive Type
Belt Drive
Sub Application
General Purpose
Shaft Design
Keyed
Product Type
Fan and Blower Motor
Wattage
560 W
Frequency
60 Hz
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.25
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Number of Speeds
2

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 9.0/6.4 A Full Load Amps, 56 Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
