  11. Soft Starter, 302A, 0 to 600VAC, 3 Phase

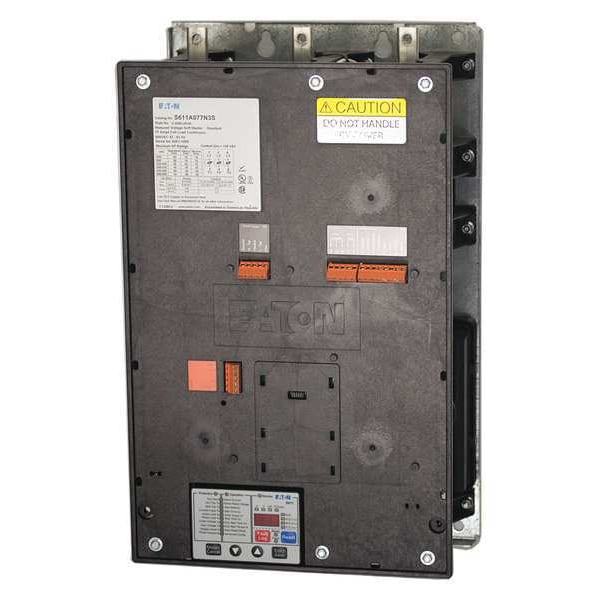

Eaton Soft Starter, 302A, 0 to 600VAC, 3 Phase S611E302N3S - main

Soft Starter, 302A, 0 to 600VAC, 3 Phase

  • Mfr # S611E302N3S

  • Zoro # G0315981

product price: $4,541.22
/ea
Free Shipping & Returns

Key Features

Output Current
302 A
Protects
Advanced Motor Protection, Jam, Stall, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping for Critical Situations, Ability for Advance Communications for Critical Load Monitoring is Required
HP @ 3 Phase - 240V
100 hp
HP @ 3 Phase - 208V
100 hp
HP @ 3 Phase - 480V
250 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S611E302N3S
Zoro #
G0315981
UPC #
786685480374
Country of Origin
Dominican Republic

Dimensions

Width
17.56 in
Depth
9.5 in
Height
29.69 in
Overall Height
29.69 in
Overall Width
17.56 in
Overall Depth
9.5 in

Details

Output Current
302 A
Protects
Advanced Motor Protection, Jam, Stall, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping for Critical Situations, Ability for Advance Communications for Critical Load Monitoring is Required
HP @ 3 Phase - 240V
100 hp
HP @ 3 Phase - 208V
100 hp
HP @ 3 Phase - 480V
250 hp
Communication Port
Modbus Built-In, Ethernet IP, Profibus and Devicenet Available, Two Different Communication Ports Available
Frequency
50/60 Hz
Start Type
Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available with Kick Start, Torque Control or Current Limit
Control Voltage
108 to 132V AC
Input Voltage
600V AC
Item
Soft Start
Stop Time
0 to 180 sec
Enclosure Rating
NEMA 1
With Bypass / No Bypass
With Bypass
Output Voltage
600V AC
Standards
CSA 3211-06, IEC 60947, UL Listed
Application
Constant and Variable Torque
IP Rating
20
Ramp Time
0.5 to 180 sec.
HP @ 3 Phase - 575V
300 hp
Starting Torque
0% to 83%
Inputs/Outputs
(3) 6A Relay Outputs
Phase
Three
Includes
IT Technology, Internal Bypass Contactors
HP @ 3 Phase - 460V
250 hp
HP @ 3 Phase - 230V
100 hp
Display
Digital
Output Power
100 hp @ 3 Phase, 200V AC, 100 hp @ 3 Phase, 240V AC, 250 hp @ 3 Phase, 480V AC, 300 hp @ 3 Phase, 575V AC
Function Type
Start or Stop
Type
Digital Keypad Control

Description

Soft Start, Input Voltage 600V AC, Output Current 302 A, Output Voltage 600V AC, 100 hp @ 3 Phase, 200V AC, 100 hp @ 3 Phase, 240V AC, 250 hp @ 3 Phase, 480V AC, 300 hp @ 3 Phase, 575V AC, Control Voltage 108 to 132V AC, NEMA 1
