Shop EATON

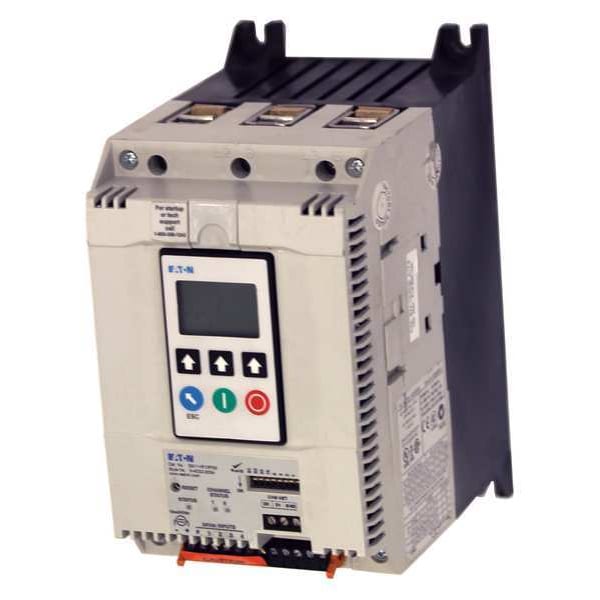

Soft Starter, 135A, 0 to 600VAC, 3 Phase

  • Mfr # S811+R13N3S

  • Zoro # G0315920

product price:  $8,762.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA 22.2-14-1995, GB14048, IEC/EN 60947-4-2, UL 508
Width
4.38 in
Application
Constant and Variable Torque
Phase
Three
IP Rating
20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S811+R13N3S
Zoro #
G0315920
UPC #
786685558943
Country of Origin
Dominican Republic

Dimensions

Width
4.38 in
Height
7.92 in
Depth
6.64 in
Overall Width
4.37 in
Overall Height
7.91 in
Overall Depth
6.69 in

Details

Standards
CSA 22.2-14-1995, GB14048, IEC/EN 60947-4-2, UL 508
Application
Constant and Variable Torque
Phase
Three
IP Rating
20
Inputs/Outputs
Analog Input, (3) 6A Relay Outputs, (9) Function Based Digital Inputs/Outputs
Stop Time
0 to 60 sec
Frequency
60/50 Hz
Communication Port
Modbus RTU
Starting Torque
0% to 83%
HP @ 3 Phase - 240V
40 hp
Protects
Motor Overload, Jam, Stall, Pole Over Temperature, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping for Critical Situations, Ability for Advance Communications for Critical Load Monitoring
Item
Soft Start
Enclosure Rating
NEMA 1
Output Current
135 A
Input Voltage
600V AC
HP @ 3 Phase - 208V
30 hp
Includes
IT Technology, Internal Bypass Contactors, Lugs
Start Type
Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available with Kick Start, Torque Control or Current Limit
Control Voltage
24V DC
With Bypass / No Bypass
With Bypass
HP @ 3 Phase - 480V
75 hp
Output Voltage
600V AC
Ramp Time
0 to 180 sec.
HP @ 3 Phase - 575V
100 hp
HP @ 3 Phase - 460V
75 hp
HP @ 3 Phase - 230V
40 hp
Function Type
Start/Stop
Output Power
30 hp @ 3 Phase, 200V AC, 40 hp @ 3 Phase, 240V AC, 75 hp @ 3 Phase, 480V AC, 75 hp @ 3 Phase, 575V AC
Type
Digital Keypad Control
Stop Time - Maximum
60 sec
Number of Outputs - Digital
9
Output Power @ Three-Phase - 208V
30 hp
Number of Inputs - Analog
1
Ramp Time - Minimum
0 sec
Output Power @ Three-Phase - 230V
40 hp
Output Power @ Three-Phase - 460V
75 hp
Product Type
Soft Start
Communication Protocols Supported
Modbus RTU
Output Power @ Three-Phase - 480V
75 hp
Stop Time - Minimum
0 sec
Output Power @ Three-Phase - 575V
100 hp
Bypass Design
With Bypass
Ramp Time - Maximum
180 sec
Number of Outputs - Relay
3
Includes Communication Port
Yes
Number of Inputs - Digital
9
Output Power @ Three-Phase - 240V
40 hp

Description

Soft Start, Input Voltage 600V AC, Output Current 135 A, Output Voltage 600V AC, 30 hp @ 3 Phase, 200V AC, 40 hp @ 3 Phase, 240V AC, 75 hp @ 3 Phase, 480V AC, 75 hp @ 3 Phase, 575V AC, Control Voltage 24V DC, NEMA 1
