  11. Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires

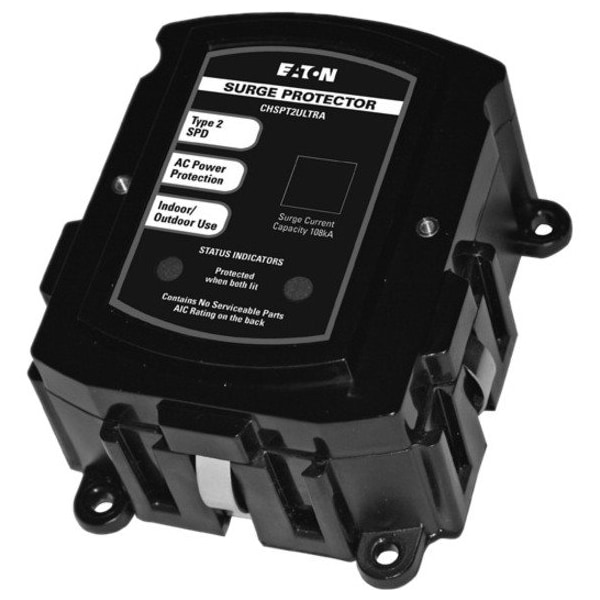

Eaton Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires CHSPT2ULTRA - main

Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires

  • Mfr # CHSPT2ULTRA

  • Zoro # G3672566

product price: $321.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Loadcenter
Phase
1
Voltage
120/240V
Number of Poles
2
Voltage Protection Rating
1000V (L-L), 600V (L-G, L-N), 800V (N-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CHSPT2ULTRA
Zoro #
G3672566
UPC #
786685476520
Country of Origin
China

Dimensions

Length
7 in
Depth
2 1/2 in
Width
5 in

Details

Item
Surge Protection Device
Mounting Style
Loadcenter
Phase
1
Voltage
120/240V
Number of Poles
2
Voltage Protection Rating
1000V (L-L), 600V (L-G, L-N), 800V (N-G)
Number of Wires
2 Wires
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current Per Mode
54kA
Max. Surge Current per Mode
108 kA
Max. Surge Current per Phase
108 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
22kA
Modular
Yes
Filtering
No
Max. Continuing Operating Voltage
150/300V AC
Enclosure NEMA Rating
NEMA 4
IP Rating
IP56
Enclosure Material
Advanced Polymer
Wire Gauge
14 AWG
Includes
(4) Self Tapping Screws
Modular / Nonmodular
Modular
Standards
cUL Listed, UL 1449, Type 2
Joules
2,820
Lightning Impulse Current
108 kA
Color
Black
Amps
50 A
Max. Operating Temp.
122 Degrees F
UL SPD Type
Type 2
Basic Material
Nonmetallic
System Connection
Parallel
Min. Operating Temp.
-40 Degrees F
Output Voltage
230 V AC, 120 V AC
Type
Surge protection device
Includes Surge Counter
No
Operating Temperature
-40 to 50 °C
Surge Current
108 kA
Operating voltage
150V L-N, 300V L-L
Frequency Rating
60 Hz
Certifications
cUL Certified
Interrupt rating
200 kAIC
Special Features
Meets or exceeds the requirments specified in IBC ®2006, CBC2007, and UBC®Zone 4
Product Series
CHSPT2
Receptacles
Hardwired, AC Power

Description

Surge Protection Device, Nonmetallic, Black, Amps 50 A, Depth 2.5 in, Enclosure Material Advanced Polymer, Enclosure NEMA Rating 4, Joules 2,820
