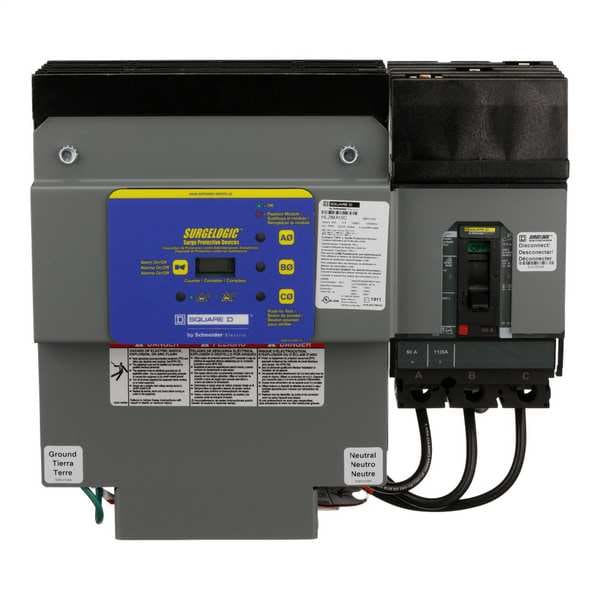

Surge Protection Device, 3 Phase, 120/208V AC, 3 Poles, 4 Wires, 160kA

  • Mfr # HL2IMA16C

  • Zoro # G6421177

product price:
$
9,379.58
/ea
Free Shipping & Returns

Key Features

Mounting Style
For I-Line Panelboards
Phase
3
Voltage
120/208V AC
Number of Poles
3
Voltage Protection Rating
1200V (L-L, L-N), 700V (L-G), 900V (N-G)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HL2IMA16C
Zoro #
G6421177
UPC #
785901679127
Country of Origin
Mexico
Item
Surge Protection Device
Mounting Style
For I-Line Panelboards
Phase
3
Voltage
120/208V AC
Number of Poles
3
Voltage Protection Rating
1200V (L-L, L-N), 700V (L-G), 900V (N-G)
Number of Wires
4 Wires
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
160 kA
Max. Surge Current Per Phase
160 kA
Max. Surge Current per Phase
160 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150V AC
Enclosure NEMA Rating
NEMA 2
Enclosure Material
Metal
Wire Gauge
6 AWG
Includes
Dry Contacts
Standards
CSA C22.2 No 5-09, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, UL 1449:ed. 3, UL 1283:ed. 5, Type 2
Modular / Nonmodular
Modular
Filtering / Nonfiltering
Filtering
UL SPD Type
Type 2
Amps
60 A
Color
Gray
System Connection
Parallel
Basic Material
Metallic
Status Indicator
Audible Alarm, LED Light
Includes Surge Counter
Yes
Breaking Capacity Code
HL
Local Signalling
status LED green per phase normal operation || status LED red per phase fault
Surge Current
160 kA
Mounting Support
panel mounting
Line Rated Current
60 A
Breaking Capacity
50 kA
Trip Unit Technology
thermal-magnetic
Provided Equipment
alarm enable/disable switch || surge counter || circuit-breaker
[Uc] Maximum Continuous Operating Voltage
150 V
Connections - Terminals
I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
Device Short Name
IMA

Description

Surge Protection Device, Metallic, Gray, Amps 60 A, Depth 5.59 in, Enclosure NEMA Rating 2
