  6. Surge Protection Device, 1 Phase, 120/240VAC, 2 Poles, 4 Wires

This item is Discontinued.

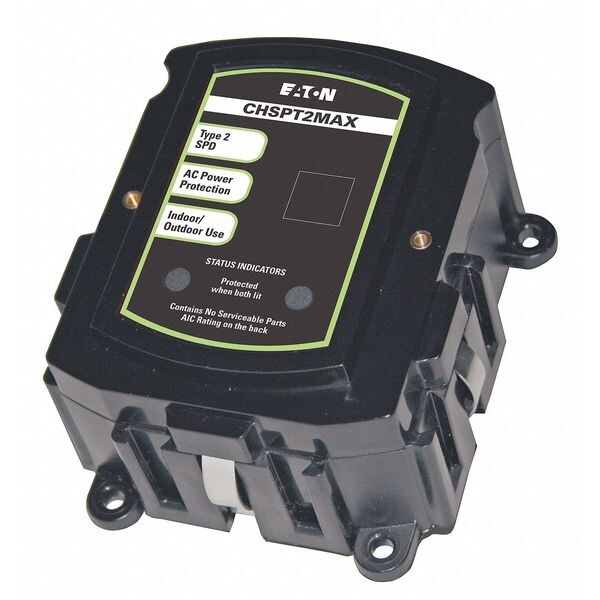

Eaton Surge Protection Device, 1 Phase, 120/240VAC, 2 Poles, 4 Wires CHSPT2MAX

Surge Protection Device, 1 Phase, 120/240VAC, 2 Poles, 4 Wires (Discontinued)

  • Mfr # CHSPT2MAX
  • Zoro # G3631117
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CHSPT2MAX
Zoro #
G3631117
UPC #
786685476513
Country of Origin
United States

Dimensions

Length
5.00"
Depth
2.25"
Width
4.00"
Length (Straight Wireway)
5.00 in

Details

Item
Surge Protection Device
Mounting Style
Loadcenter
Phase
1
Voltage
120/240VAC
Number of Poles
2
Voltage Protection Rating
600V (L-G, L-N), 800V (N-G), 1000V (L-L)
Number of Wires
4 Wires
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
36kA
Max. Surge Current per Phase
72 kA
Nominal Discharge Current
10kA
Short Circuit Current Rating
22kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150/300 V AC
Enclosure NEMA Rating
4
Enclosure Material
Plastic
Wire Gauge
14 AWG
Includes
Installation Instructions
Standards
UL 1449 3rd Edition
Modular / Nonmodular
Modular
Filtering / Nonfiltering
Filtering

Description

Surge Protection Device, Depth 2.25 in, Enclosure Material Plastic, Enclosure NEMA Rating 4
