This item is Discontinued.

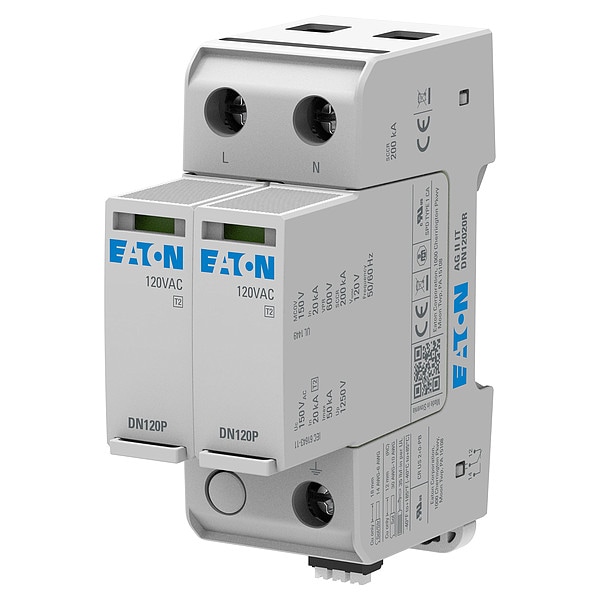

Eaton Surge Protection Device, 2 Phase, 120V, 2 Poles, 2 Wires AGDN12020R

Surge Protection Device, 2 Phase, 120V, 2 Poles, 2 Wires (Discontinued)

  • Mfr # AGDN12020R
  • Zoro # G209981541
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AGDN12020R
Zoro #
G209981541
UPC #
-
Country of Origin
Slovenia

Dimensions

Depth
4.13 in
Width
1.42 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Phase
2
Voltage
120V
Number of Poles
2
Voltage Protection Rating
1500V (L-L, L-G, N-G)
Number of Wires
2 Wires
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Filtering
No
Max. Continuing Operating Voltage
120V AC
Enclosure Material
Non-Metallic
Includes
Alarm Contacts
Standards
ANSI/ULT 1449 5th Edition, Prop 65 Compliant, REACH Compliant, RoHS Compliant
Amps
50 kA
Status Indicator
Mechanical Flag
UL SPD Type
Type 1CA
Min. Operating Temp.
-40 Degrees F
Max. Operating Temp.
185 Degrees F
Basic Material
Nonmetallic
System Connection
Parallel

Description

Surge Protection Device, Nonmetallic, Amps 50 kA, Depth 4.13 in
