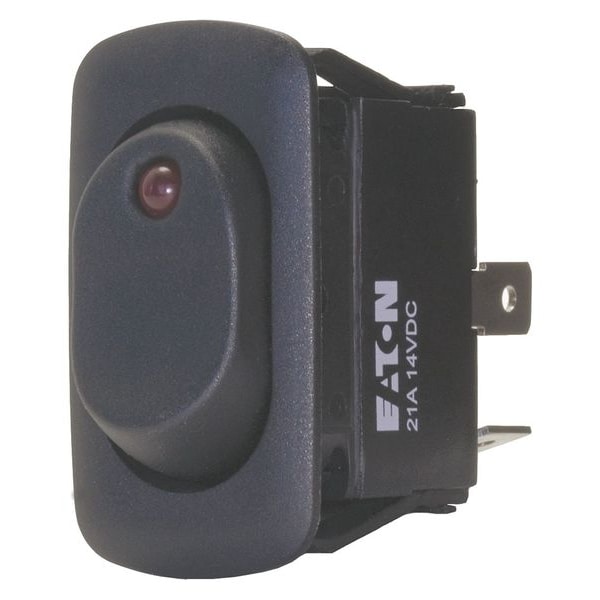

Eaton Switch, Maint, Off/On, 1/4 In Tab XR1AEX2NV1XX - main

Switch, Maint, Off/On, 1/4 In Tab

  • Mfr # XR1AEX2NV1XX

  • Zoro # G5305657

product price: $10.39
/ea

Key Features

Contact Form
SPST
Number of Connections
3
Switch Function
Off/On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.830 in x 1.460 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XR1AEX2NV1XX
Zoro #
G5305657
UPC #
786685885339
Country of Origin
China

Dimensions

Height
1.87 in
Length
1.81 in
Width
0.98 in
Mounting Hole Width
0.83 in
Overall Width
0.98 in
Overall Height
1.81 in
Mounting Hole Length
1.46 in
Overall Depth
1.87 in

Details

Item
Lighted Rocker Switch
Contact Form
SPST
Number of Connections
3
Switch Function
Off/On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.830 in x 1.460 in
AC Contact Rating
10 A @ 277 V, 16 A @ 125 V
HP
3/4 hp
Special Features
14V DC LED Indicator Light, Illuminated
Standards
cRUus, RoHS, UL E2702
Product Type
Rocker Switch
IP Rating
IP56
Color
Red
Lamp Voltage - Maximum
14 V DC
Operating Temperature - Maximum
176 Degrees F
Operator Illumination
Illuminated
Horsepower
3/4 hp @ 277 V
Operating Temperature - Minimum
-4 Degrees F
Number of Positions
2
Series
X
Includes Lens
No Lens Included
Features
Nylon with Glass Fiber Actuators, Nylon Material Frames, Plastic Bezel, Silver Plated Brass Terminals
Lamp Type
LED
Terminal Connection Type
0.25 in Quick Connect Tab
Switch Function Configuration
Off/On

Description

Lighted Rocker Switch, Contact Form SPST, Number of Connections 3, Switch Function Off/On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.830 in x 1.460 in, AC Contact Rating 10 A @ 277 V, 16 A @ 125 V, HP 3/4 hp, Standards cRUus, RoHS, UL E2702, IP Rating IP56, Special Features 14V DC LED Indicator Light, Illuminated
