This item is Discontinued.

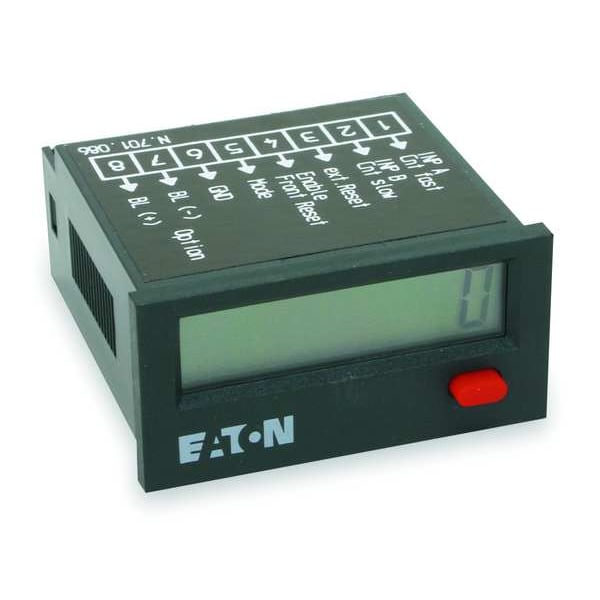

Eaton Totalizer, LCD, 8 Digits, 12kHzPNP/30Hz NPN E5-024-C0400

Totalizer, LCD, 8 Digits, 12kHzPNP/30Hz NPN (Discontinued)

  • Mfr # E5-024-C0400
  • Zoro # G2222236
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E5-024-C0400
Zoro #
G2222236
UPC #
786685680927
Country of Origin
Germany

Dimensions

Length
0.94 in
Width
1.89 in
Depth
1.88 in
Length (Straight Wireway)
0.94 in
Product Length/Depth
13 in
Product Width
12 in
Product Height
5 in
Digit Height - Maximum
0.31 in
Cutout Height
9/10 in
Digit Height - Minimum
0.31 in
Cutout DIN Size
1/32
Cutout Width
1 4/5 in

Details

Item
Digital Counter/Timer
Mounting
Panel
Reset Type
Push Button, Remote Signal
Display
8-Digit LCD
Number of Digits
8
Input Signal
NPN, PNP
Input Voltage
4 to 30V DC
Standards
CE, UL
Max. Counts per Second
12,000
Scaler
No
Series
E5
Min. On/Off Pulse
0.042 / 0.042 msec
Fits Panel Cut Out
24 x 48mm
Product Type
Totalizer
Texture
Matte
Icon location
B
Rocker color
Black
Legend color
None, lens hole
Type
Two-face, snap-in lens
Input Voltage - Maximum
260 V AC/DC
Mounting Style
Panel
Counter Display Type
LCD
Display Span - Maximum
99,999,999
Background Color
Gray
Counts per Second - Maximum
12,000
Input Voltage - Minimum
10 V AC/DC
Display Features
High Contrast
Digit Color
Black
Features
Filter Function for Bounce-Free Counting with Mechanical Contacts, Various Counting Modes

Description

Totalizer, 1/32 DIN, Battery Powered, Number of Digits 8, LCD Display, Counts per Second 12kHz PNP/30 Hz NPN, Input Signal PNP/NPN, Panel Mounting, Length 1.1 In, Depth 1.88 In, Width 1.89 In, Series E5, Min On/Off Pulse 0.042 / 0.042 mSec, Reset Type Front / Rear, Standards UL/ CE

Restrictions

Hazardous material
