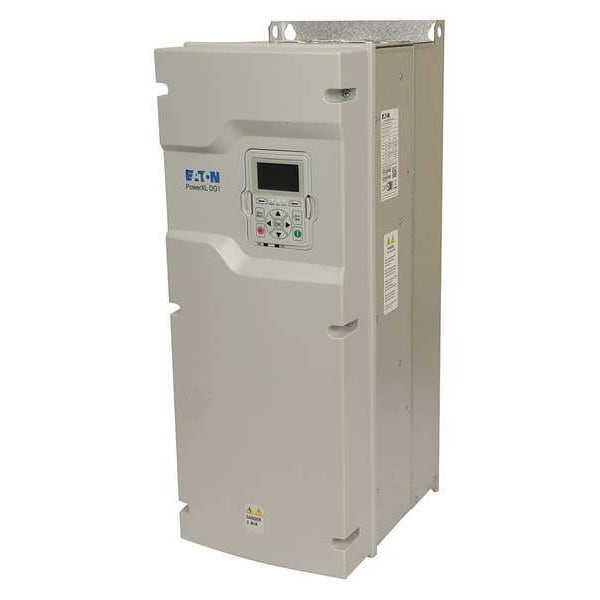

Variable Freq Drive, 50 HP, 72A, 380-500VAC

  • Mfr # DG1-34072FN-C21C

  • Zoro # G0121287

product price:  $7,357.99
/ea
Free Shipping & Returns

Key Features

Protection
Incoming Surge, Input Phase Loss, Output Phase Loss, Overcurrent, Overheating, Overload, Overvoltage, Stall, Under Voltage
Dynamic Braking
Yes
Input Frequency
60/50 Hz
Input Voltage
480V AC
Max. Output Amps
72 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DG1-34072FN-C21C
Zoro #
G0121287
UPC #
786685878867
Country of Origin
Dominican Republic

Dimensions

Width
9.36 in
Height
23.27 in
Depth
11.57 in
Overall Height
16 1/4 in
Overall Depth
27 3/4 in
Overall Width
14 1/2 in

Details

Protection
Incoming Surge, Input Phase Loss, Output Phase Loss, Overcurrent, Overheating, Overload, Overvoltage, Stall, Under Voltage
Dynamic Braking
Yes
Input Frequency
60/50 Hz
Input Voltage
480V AC
Max. Output Amps
72 A
Control Type
Built-In Keypad
Item
Variable Frequency Drive
With Line Contactor / No Line Contactor
No Line Contactor
Display Type
LCD
Output Voltage
480V AC
Start/Stop Control
Automatic, Manual, Programmable
Input Phase AC
Three
Standards
RoHS, GoST-R, C-Tick, CE, cUL Listed, UL Listed, UL 508C, EN ISO 13849-1, IEC 61508, EN 62061
Control Method
Active Energy Control
Output Phase AC
Three
Key Pad Lockout
Yes
For Use With
3-Phase Inverter Duty Motor
Accepts Input Control Signal
0-10V DC, 4-20mA
Digital Readout
Yes
With Bypass / No Bypass
No Bypass
Enclosure
Open
Displays
LCD Keypad
Max. HP
50 hp
Starting Torque
1.5
Series
Power XL Drives
Color
White
Output Type
Analog, Digital
Number of Outputs
(1) Digital Output, (2) Analog Output
Input Voltage Range
380 to 500V AC
Input Type
Analog, Digital
Output Voltage Range
380V AC to 500V AC
Maximum Output Current
72 A
Output Frequency Range
0 to 400 Hz
Form Factor
0.01 Hz Resolution
Torque Application
Constant Torque, Variable Torque
Enclosure Rating
NEMA 1
Style
Industrial High Performance
Ethernet Port Included
Yes
Application
Industrial General Purpose Drive
Number of Inputs
(8) Digital Inputs, (2) Analog Input
Brake Chopper Included
Yes
Maximum Output Power
50 hp
Includes Brake Chopper
Yes
Output Phase
Three
Number of Inputs - Digital
8
Line Contactor Design
No Line Contactor
Input Phase
Three
Output Frequency - Minimum
400 Hz
IP Rating
IP21
Number of Inputs - Analog
2
Bypass Design
No Bypass
Product Type
Variable Frequency Drive
Output Horsepower
50 hp
Output Frequency - Maximum
0 Hz
Includes Ethernet Port
Yes
NEMA Rating
NEMA 1
Number of Outputs - Digital
1
Number of Outputs - Analog
2
Output Current - Maximum
72 A

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 50 hp, Maximum Output Current 72 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating NEMA 1

Restrictions

Hazardous material
