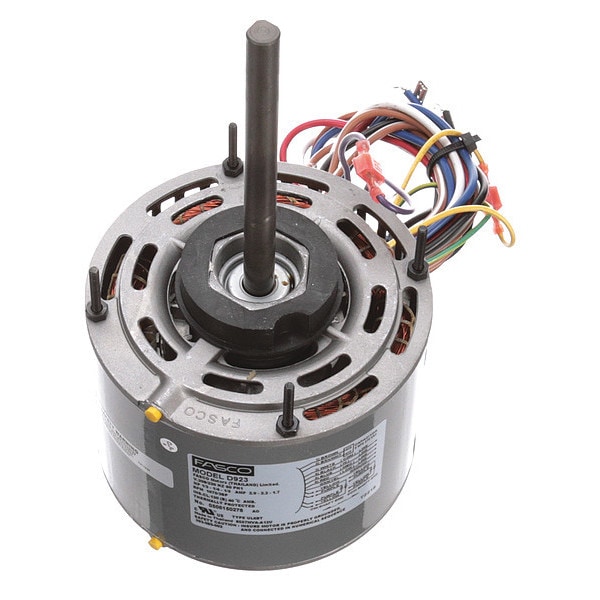

Direct Drive Blower Motor, 1/3 HP

  • Mfr # D923
  • Zoro # G6422836
product price:
$
143.99
/ea
Free Shipping & Returns

Key Features

Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Full Load Amps
2.9-2.2-1.7 A
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
RPM Range
1,001-1,100
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D923
Zoro #
G6422836
UPC #
818508020624
Country of Origin
Thailand

Dimensions

Shaft Length
6 in
Bolt Circle Dia.
5 1/4 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Overall Length
10 15/16 in
Length Less Shaft
4 5/8 in
Manufacturers Warranty Length
1 yr
Mounting Stud Length
1 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Lead Length
26 in
Shaft Diameter
1/2 in
Frame Size
48
Resilient Ring Diameter
2 1/2 in
Bolt Circle Diameter
5 1/4 in
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
10 15/16 in
Length
10 15/16 in

Details

Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Full Load Amps
2.9-2.2-1.7 A
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
RPM Range
1,001-1,100
Phase
Single
Nominal Efficiency
0.57 %
Item
Fan and Blower Motor
Mounting Stud Pattern
3-11/16 in x 3-11/16 in
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Motor Design
Permanent Split Capacitor
Ring to Ring Center
5 1/16 in
Capacitor Required
Capacitor Not Included
Duty
Continuous
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Voltage
208V AC to 230V AC
Motor Shaft Design
Double-Flat
Nameplate RPM
1,075
Motor Mounting Position
All Angle
Hz
60 Hz
Mounting Stud Location
4/Shaft End
Frame
48
HP
1/3, 1/4, 1/5
Motor Enclosure Design
Open Dripproof
Motor Service Factor
1
Motor Mounting Type
Ring/Stud
No. of Speeds
3
Motor Application
HVAC/R
Weight
13 lb
Number of Shafts
1
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Manufacturers Warranty
1 yr
Drive Type
Belt Drive
Motor Enclosure Type
Open Drip Proof
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Sub Application
General Purpose
Application
Fan/Blower
Product Type
Fan and Blower Motor
Frame Material
Steel
Shaft Design
Double Flat
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Wattage
250 W
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
All Angle
Full Load Current @ 60 Hz
2.9-2.2-1.7 A
Number of Speeds
3

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp, 1/4 hp, 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.9-2.2-1.7 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
