This item is Discontinued.

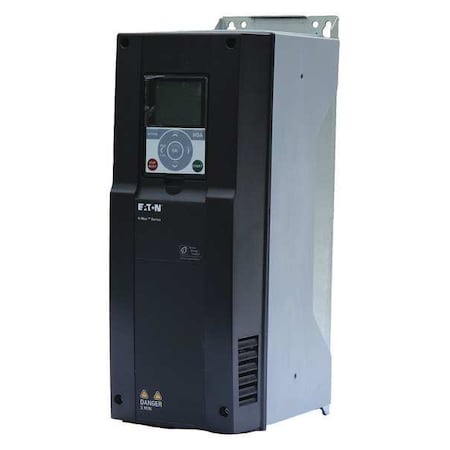

Eaton Variable Frequency Drive, 10 HP, 5.67 in W HMX34AG01621-N

Variable Frequency Drive, 10 HP, 5.67 in W (Discontinued)

  • Mfr # HMX34AG01621-N
  • Zoro # G8822274
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMX34AG01621-N
Zoro #
G8822274
UPC #
-
Country of Origin
United States

Dimensions

Depth
8.73 in
Width
5.67 in
Height
16.5 in
Overall Depth
19 1/2 in
Overall Width
8 in
Overall Height
11 in

Details

Digital Readout
Clock
Enclosure
Totally Enclosed
Item
Variable Frequency Drive
Starting Torque
150%
Input Phase AC
Three
Displays
Speed, Alarms and Programmable
Adjustable Acceleration Time
0.1 to 3,000 sec
Start/Stop Control
Programmable
Output Frequency Range
0 to 320 Hz
Adjustable Deceleration Time
0.1 to 3,000 sec
Key Pad Lockout
Yes
Standards
CE Marked, IEC 61800-5-1, EN 61800-5-1, UL 508C, cUL Certified
With Bypass / No Bypass
With Bypass
Output Voltage
480V AC
Display Type
LCD
Control Type
Keypad
Torque @ 1 Hz
110%
Control Method
Frequency Control (V/f) Open Loop Sensor less
Max. HP
10 hp
With Line Contactor / No Line Contactor
No Line Contactor
Input Voltage
480V AC
Max. Output Amps
16 A
Accepts Input Control Signal
Yes
Output Phase AC
Three
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Input Frequency
50/60 Hz
Protection
Conformal Coated (varnished) Board, Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Underload, Overcurrent, Overtemperature, Overvoltage, Short-Circuit, Surge, Undervoltage
For Use With
3-Phase Inverter Duty Motor
Output Type
Analog
Enclosure Rating
NEMA 1
Number of Inputs
(6) Digital Inputs, (2) Analog Inputs
Color
Black/Blue/Gray
Number of Outputs
(1) Analog Out, (2) Form C Relay Out, (1) Form A Relay Out
Brake Chopper Included
No
Ethernet Port Included
Yes
Maximum Output Current
16 A
Application
HVAC, Mechanical Contractor AC Drive, Pump
Maximum Output Power
10 hp
Series
H-Max
Torque Application
Variable Torque
Style
Pump, HVAC & Mechanical Contractor Drive
Dynamic Braking
No
Input Voltage Range
380 to 480V AC
Output Voltage Range
380V AC to 480V AC
Input Type
Analog, Digital

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 10 hp, Maximum Output Current 16 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
