This item is Discontinued.

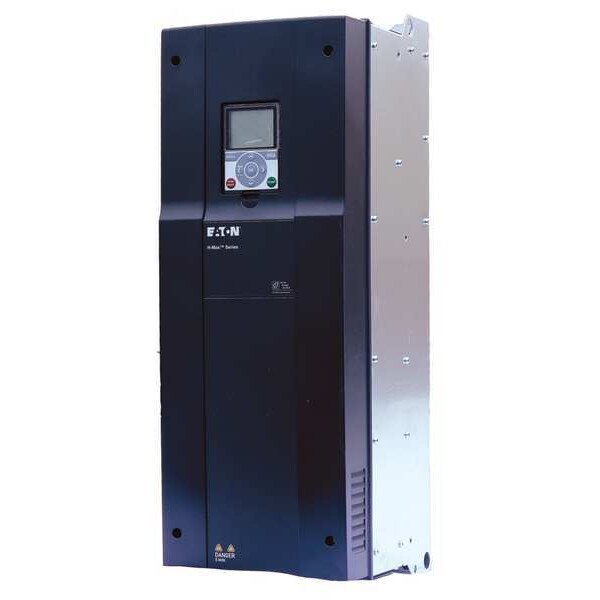

Eaton Variable Frequency Drive, 100 HP, 38.02inH HMX34AG14021-N

Variable Frequency Drive, 100 HP, 38.02inH (Discontinued)

  • Mfr # HMX34AG14021-N
  • Zoro # G2219449
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HMX34AG14021-N
Zoro #
G2219449
UPC #
-
Country of Origin
United States

Dimensions

Height
38.02 in
Width
11.42 in
Depth
13.76 in
Overall Width
11 3/8 in
Overall Depth
38 1/8 in
Overall Height
13 3/4 in

Details

Control Type
Keypad, Remote, Ethernet, Other Communication Networks
Item
Variable Frequency Drive
Output Frequency Range
0 to 320 Hz
Standards
CE Marked, IEC 61800-5-1, EN 61800-5-1, UL 508C, cUL Certified
Display Type
LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Output Phase AC
Three
Input Frequency
50/60 Hz
Starting Torque
150%
Adjustable Acceleration Time
0.1 to 3,000 sec
Start/Stop Control
Programmable
With Line Contactor / No Line Contactor
No Line Contactor
Max. HP
100 hp
Accepts Input Control Signal
Remote Contact
Input Phase AC
Three
Protection
Conformal Coated (varnished) Board, Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Underload, Overcurrent, Overtemperature, Overvoltage, Short-Circuit, Surge, Undervoltage
For Use With
3-Phase Inverter Duty Motor
Max. Output Amps
140 A
Torque @ 1 Hz
110%
Output Voltage
480V AC
With Bypass / No Bypass
No Bypass
Digital Readout
Yes
Input Voltage
480V AC
Displays
Alarms, Programmable, Speed
Adjustable Deceleration Time
0.1 to 3,000 sec
Control Method
Frequency Control (V/f) Open Loop Sensor less
Key Pad Lockout
Yes
Enclosure
Totally Enclosed
Application
HVAC, Mechanical Contractor AC Drive, Pump
Output Voltage Range
380V AC to 480V AC
Ethernet Port Included
Yes
Style
Pump, HVAC & Mechanical Contractor Drive
Color
Black/Blue/Gray
Torque Application
Variable Torque
Enclosure Rating
NEMA 1
Brake Chopper Included
No
Output Type
Analog
Number of Outputs
(1) Analog Out, (2) Form C Relay Out, (1) Form A Relay Out
Maximum Output Power
100 hp
Maximum Output Current
140 A
Dynamic Braking
No
Input Type
Analog, Digital
Series
H-Max
Number of Inputs
(6) Digital Inputs, (2) Analog Inputs
Input Voltage Range
380 to 480V AC

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 100 hp, Maximum Output Current 140 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
