This item is Discontinued.

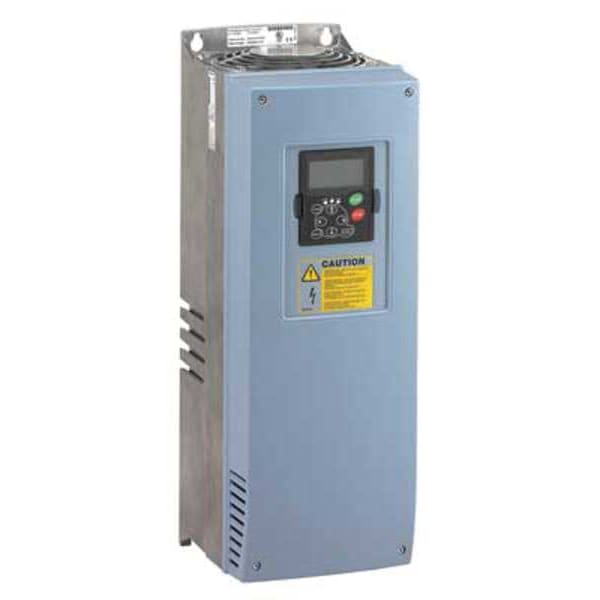

Eaton Variable Frequency Drive, 15 HP, 208-240V HVX015A1-2A1B1

Variable Frequency Drive, 15 HP, 208-240V (Discontinued)

  • Mfr # HVX015A1-2A1B1
  • Zoro # G0267601
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HVX015A1-2A1B1
Zoro #
G0267601
UPC #
-
Country of Origin
Finland

Dimensions

Depth
9.3 in
Width
7.6 in
Height
22 in
Overall Height
11 3/4 in
Overall Width
7 5/8 in
Overall Depth
9 in

Details

Dynamic Braking
Internal Brake Chopper Circuit
Accepts Input Control Signal
0-10V DC, 4-20mA
Standards
UL
With Bypass / No Bypass
No Bypass
Starting Torque
2
Item
Variable Frequency Drive
Torque @ 1 Hz
1
For Use With
3-Phase Inverter Duty Motor
Input Phase AC
Three
Input Frequency
50/60 Hz
With Line Contactor / No Line Contactor
No Line Contactor
Max. HP
15 hp
Protection
Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Digital Readout
Yes
Input Voltage
240V AC
Control Type
Keypad
Start/Stop Control
Programmable
Control Method
Frequency Control (V/f) Open Loop Sensor less
Display Type
LCD
Adjustable Deceleration Time
0 to 3,000 sec
Key Pad Lockout
Yes
Displays
LCD Keypad
Max. Output Amps
48 A
Output Voltage
240V AC
Output Frequency Range
0 to 320 Hz
Output Phase AC
Three
Enclosure
Open
Adjustable Acceleration Time
0 to 3,000 sec
Maximum Output Current
48 A
Enclosure Rating
NEMA 1
Maximum Output Power
15 hp

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 15 hp, Maximum Output Current 48 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
