This item is Discontinued.

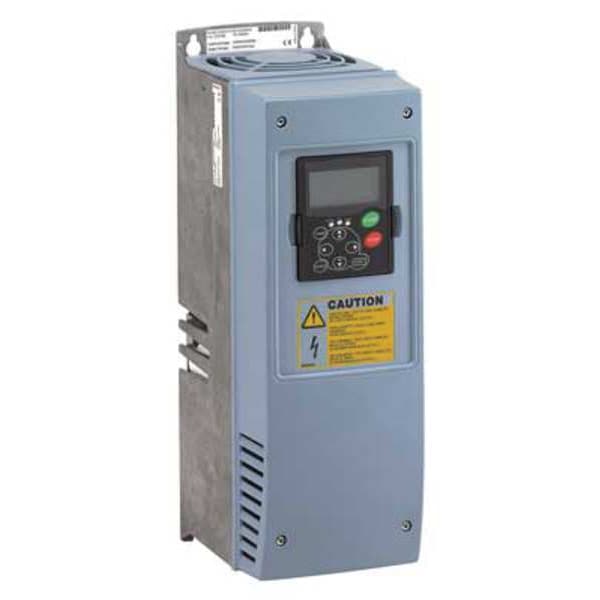

Eaton Variable Frequency Drive, 20 HP, 380-500V HVX020A1-4A1B1

Variable Frequency Drive, 20 HP, 380-500V (Discontinued)

  • Mfr # HVX020A1-4A1B1
  • Zoro # G1164125
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HVX020A1-4A1B1
Zoro #
G1164125
UPC #
-
Country of Origin
Finland

Dimensions

Width
5.6 in
Depth
8.4 in
Height
16.5 in
Overall Depth
8 3/8 in
Overall Width
5 5/8 in
Overall Height
16 1/2 in

Details

Accepts Input Control Signal
0-10V DC, 4-20mA
Input Voltage
480V AC
With Bypass / No Bypass
No Bypass
Digital Readout
Yes
Control Method
Frequency Control (V/f) Open Loop Sensor less
Max. HP
20 hp
Standards
UL
Output Phase AC
Three
Max. Output Amps
31 A
Adjustable Deceleration Time
0 to 3,000 sec
Input Phase AC
Three
Control Type
Keypad
Torque @ 1 Hz
1
Adjustable Acceleration Time
0 to 3,000 sec
Dynamic Braking
Internal Brake Chopper Circuit
Display Type
LCD
Input Frequency
50/60 Hz
For Use With
3-Phase Inverter Duty Motor
Start/Stop Control
Programmable
With Line Contactor / No Line Contactor
No Line Contactor
Item
Variable Frequency Drive
Displays
LCD Keypad
Key Pad Lockout
Yes
Enclosure
Open
Output Voltage
480V AC
Protection
Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Output Frequency Range
0 to 320 Hz
Starting Torque
2
Enclosure Rating
NEMA 1
Maximum Output Power
20 hp
Maximum Output Current
31 A

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 31 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
