This item is Discontinued.

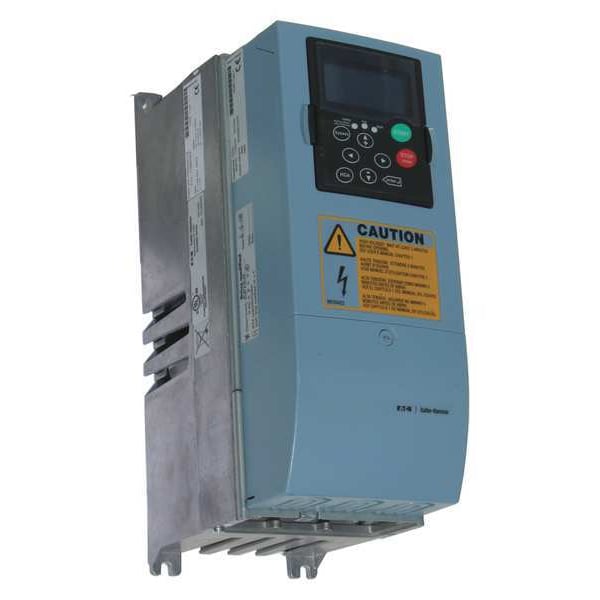

Eaton Variable Frequency Drive, 20 HP, 9.3 in. W SVX020A1-2A1N1

Variable Frequency Drive, 20 HP, 9.3 in. W (Discontinued)

  • Mfr # SVX020A1-2A1N1
  • Zoro # G8821592
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVX020A1-2A1N1
Zoro #
G8821592
UPC #
-
Country of Origin
Finland

Dimensions

Width
9.3 in
Height
24.8 in
Depth
7.3 in
Overall Width
9 5/8 in
Overall Depth
10 1/8 in
Overall Height
24 3/4 in

Details

Adjustable Acceleration Time
0 to 3,000 sec
With Line Contactor / No Line Contactor
No Line Contactor
Control Type
Keypad, Remote
Adjustable Deceleration Time
0 to 3,000 sec
Max. Output Amps
61 A
Output Voltage
240V AC
Key Pad Lockout
Yes
Input Phase AC
Three
Protection
Earth fault protection, Motor overload protection, Motor stall protection, Motor underload protection, Overcurrent protection, Overtemperature protection, Overvoltage protection, Short-circuit protection, Undervoltage protection
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Accepts Input Control Signal
Yes
Digital Readout
Yes
Output Frequency Range
0 to 320 Hz
Standards
UL 508C, IEC 61800-2, EN 61800-3 Level H
Torque @ 1 Hz
120%
Dynamic Braking
No
For Use With
3-Phase Inverter Duty Motor
Start/Stop Control
Programmable
Max. HP
20 hp
With Bypass / No Bypass
No Bypass
Enclosure
Open
Starting Torque
250%
Output Phase AC
Three
Control Method
Frequency Control (V/f), Open Loop: Sensor less Vector Control, Closed loop: SPX Drives Only
Displays
LED Keypad
Display Type
LED
Input Frequency
50/60 Hz
Item
Variable Frequency Drive
Input Voltage
240V AC
Maximum Output Power
20 hp
Output Voltage Range
240V AC
Style
Industrial High Performance
Application
Industrial General Purpose Drive
Input Type
Analog, Digital
Torque Application
Constant Torque, Variable Torque
Input Voltage Range
208 to 240V AC
Number of Inputs
(6) Digital Inputs, (2) Analog Inputs
Number of Outputs
(1) Output - Analog + (2) Relay Output
Output Type
Analog
Brake Chopper Included
No
Maximum Output Current
61 A
Enclosure Rating
NEMA 1
Color
White
Series
SVX Series
Ethernet Port Included
No

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 61 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
