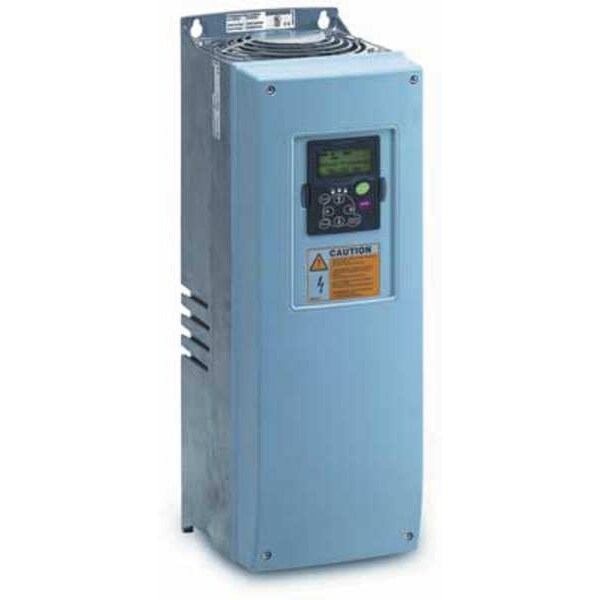

Eaton Variable Frequency Drive, 40 HP, 380-500V HVX040A2-4A1B1

Variable Frequency Drive, 40 HP, 380-500V (Discontinued)

  • Mfr # HVX040A2-4A1B1
  • Zoro # G2126101
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HVX040A2-4A1B1
Zoro #
G2126101
UPC #
-
Country of Origin
Finland

Dimensions

Width
7.6 in
Height
22 in
Depth
9.3 in
Overall Depth
9 1/4 in
Overall Width
7 5/8 in
Overall Height
22 in

Details

Torque @ 1 Hz
100%
Starting Torque
200%
Digital Readout
Yes
Accepts Input Control Signal
0-10V DC, 4-20mA
Max. HP
40 hp
Max. Output Amps
61 A
Input Voltage
500V AC
Dynamic Braking
Optional
Displays
LCD Keypad
Start/Stop Control
Programmable
Key Pad Lockout
Yes
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
Control Method
Frequency Control (V/f) Open Loop Sensor less
Input Phase AC
Three
Protection
Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Standards
UL
Adjustable Deceleration Time
0 to 3,000 sec
Item
Variable Frequency Drive
Output Voltage
500V AC
For Use With
3-Phase Inverter Duty Motor
Adjustable Acceleration Time
0 to 3,000 sec
Control Type
Keypad, Terminal, Network
Input Frequency
50/60 Hz
Enclosure
Open
With Line Contactor / No Line Contactor
No Line Contactor
Output Frequency Range
0 to 320 Hz
Display Type
LCD
Application
Fluid Control, HV AC, Pump
Enclosure Rating
NEMA 12
Maximum Output Power
40 hp
Maximum Output Current
61 A

Description

Variable Frequency Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 40 hp, Maximum Output Current 61 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 12
