Shop EATON

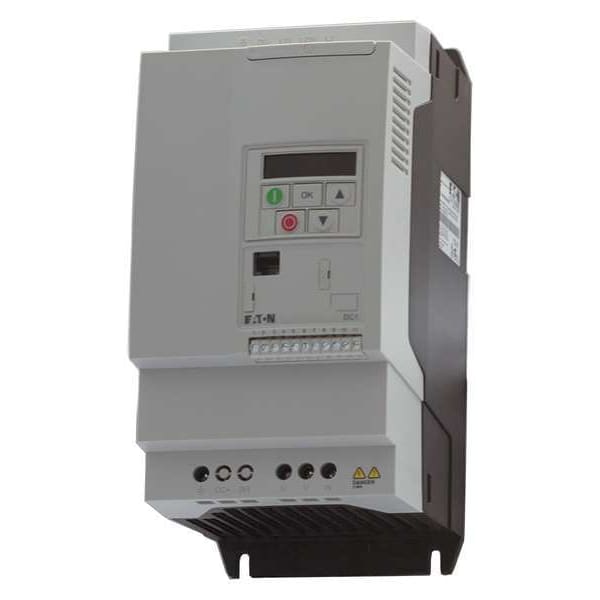

Variable Frequency Drive, 5 HP, 200-230V

  • Mfr # DA1-32018FB-A20C

  • Zoro # G0277579

product price:
$
2,304.99
/ea
Free Shipping & Returns

Key Features

Max. HP
5 hp
Input Voltage
240V AC
Output Voltage
240V AC
Input Phase AC
Three
Enclosure
Open
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DA1-32018FB-A20C
Zoro #
G0277579
UPC #
-
Country of Origin
United Kingdom

Dimensions

Height
10.75 in
Width
5.16 in
Depth
7.32 in
Overall Height
10 3/4 in
Overall Width
5 1/8 in
Overall Depth
8 1/8 in

Details

Item
Variable Frequency Drive
Max. HP
5 hp
Input Voltage
240V AC
Output Voltage
240V AC
Input Phase AC
Three
Enclosure
Open
Max. Output Amps
18 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Output Frequency Range
0 to 500 Hz
Protection
Overload
For Use With
3-Phase Inverter Duty Motor
Control Type
Remote Keypad
Input Frequency
60/50 Hz
Displays
LED Keypad
Starting Torque
2
Dynamic Braking
No
Torque @ 1 Hz
2
Control Method
PID Controller, V/Hz, Sensor less Vector (SLV), Closed-Loop Vector (CLV) Control
Standards
RoHS Compliant, C-Tick Compliant, CE Marked, EN 60529, cUL Certified, EN 61800-3, UL Listed, EN 61800-5-1, UkrSepro
Adjustable Deceleration Time
0 to 600 sec
Key Pad Lockout
Yes
Accepts Input Control Signal
Remote Control
Display Type
LED
Start/Stop Control
Automatic, Manual, Programmable
Digital Readout
Yes
Adjustable Acceleration Time
0 to 600 sec
Color
White
Number of Outputs
(2) Output - Analog or Digital +(2) Relay Output
Maximum Output Current
18 A
Output Voltage Range
200V AC to 240V AC
Torque Application
Constant Torque, Variable Torque
Input Voltage Range
200 to 240V AC
Input Type
Analog, Digital
Output Type
Analog, Digital
Series
DA1 Family
Style
Advanced MicroDrive
Application
High-Performance Microdrive, Machinery OEM Drive
Enclosure Rating
NEMA 0
Number of Inputs
(3) Digital Inputs, (2) Analog Inputs
Brake Chopper Included
Yes
Maximum Output Power
5 hp
Ethernet Port Included
No
Product Type
Variable Frequency Drive
Number of Outputs - Digital
2
Number of Inputs - Digital
3
Line Contactor Design
No Line Contactor
Includes Brake Chopper
Yes
Bypass Design
No Bypass
Output Current - Maximum
18 A
Output Phase
Three
Output Frequency - Minimum
500 Hz
Number of Outputs - Analog
2
Includes Ethernet Port
No
IP Rating
IP21
Accepts External Control Inputs
Yes
Output Frequency - Maximum
0 Hz
Number of Inputs - Analog
2
Output Horsepower
5 hp
Input Phase
Three
Number of Outputs - Relay
2

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 5 hp, Maximum Output Current 18 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 500 Hz, Enclosure Rating NEMA 0
