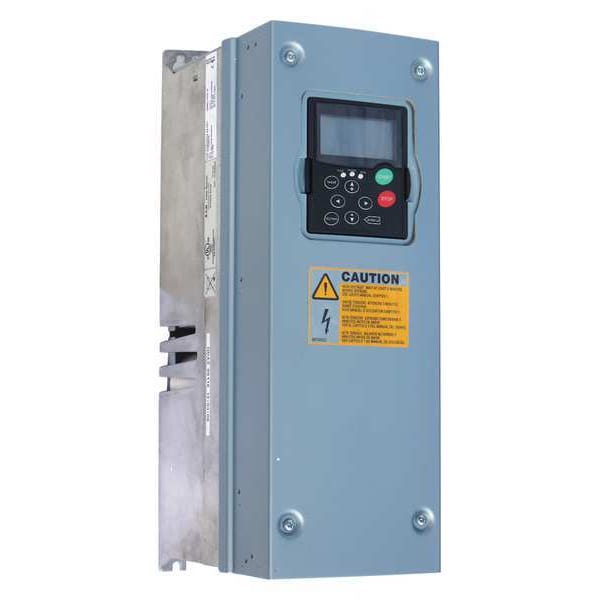

Eaton Variable Frequency Drive, 75 HP, 11.5 in W SVX075A1-4A1N1

Variable Frequency Drive, 75 HP, 11.5 in W (Discontinued)

  • Mfr # SVX075A1-4A1N1
  • Zoro # G8821863
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVX075A1-4A1N1
Zoro #
G8821863
UPC #
-
Country of Origin
Finland

Dimensions

Depth
30.1 in
Height
30.1 in
Width
11.5 in
Overall Depth
13 1/2 in
Overall Height
30 1/8 in
Overall Width
11 1/2 in

Details

Input Frequency
50/60 Hz
With Line Contactor / No Line Contactor
No Line Contactor
Output Frequency Range
0 to 320 Hz
Max. HP
75 hp
Output Voltage
500V AC
Adjustable Acceleration Time
0 to 3,000 sec
Protection
Earth fault protection, Motor overload protection, Motor stall protection, Motor underload protection, Overcurrent protection, Overtemperature protection, Overvoltage protection, Short-circuit protection, Undervoltage protection
Control Method
Frequency Control (V/f), Open Loop: Sensor less Vector Control, Closed loop: SPX Drives Only
Output Phase AC
Three
Input Phase AC
Three
Torque @ 1 Hz
120%
With Bypass / No Bypass
No Bypass
Displays
LED Keypad
Adjustable Deceleration Time
0 to 3,000 sec
Display Type
LED
Input Voltage
480V AC
Accepts Input Control Signal
Yes
Starting Torque
250%
Start/Stop Control
Programmable
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Enclosure
Open
Max. Output Amps
105 A
Item
Variable Frequency Drive
Control Type
Keypad, Remote
Digital Readout
Yes
For Use With
3-Phase Inverter Duty Motor
Standards
UL 508C, IEC 61800-2, EN 61800-3 Level H
Key Pad Lockout
Yes
Dynamic Braking
No
Output Voltage Range
500V AC
Output Type
Analog
Maximum Output Power
75 hp
Brake Chopper Included
No
Maximum Output Current
105 A
Application
Industrial General Purpose Drive
Number of Inputs
(6) Digital Inputs, (2) Analog Inputs
Color
White
Style
Industrial High Performance
Torque Application
Constant Torque, Variable Torque
Input Type
Analog, Digital
Enclosure Rating
NEMA 1
Input Voltage Range
380 to 5000V AC
Series
SVX Series
Ethernet Port Included
No
Number of Outputs
(1) Output - Analog + (2) Relay Output

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 75 hp, Maximum Output Current 105 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
