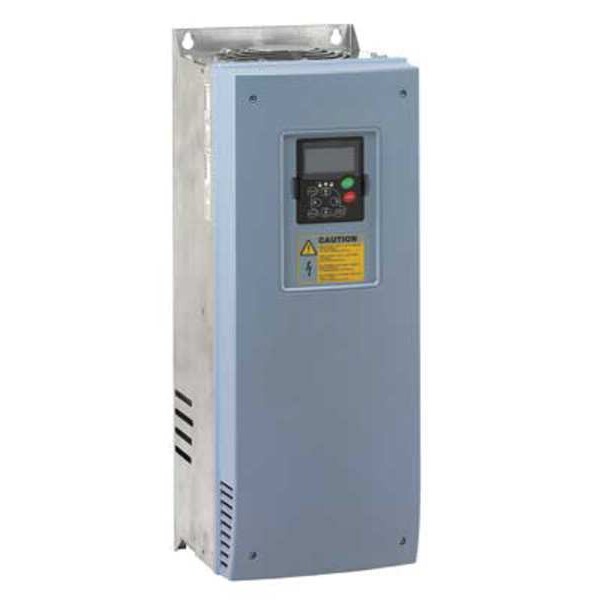

Eaton Variable Frequency Drive, 75 HP, 380-500V HVX075A1-4A1N1

Variable Frequency Drive, 75 HP, 380-500V (Discontinued)

  • Mfr # HVX075A1-4A1N1
  • Zoro # G1411487
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HVX075A1-4A1N1
Zoro #
G1411487
UPC #
-
Country of Origin
Finland

Dimensions

Width
9.3 in
Depth
10.1 in
Height
24.8 in
Overall Depth
10 in
Overall Height
24 3/4 in
Overall Width
9 1/4 in

Details

Max. HP
75 hp
Protection
Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Enclosure
Open
Display Type
LCD
Torque @ 1 Hz
1
Digital Readout
Yes
Control Type
Keypad
Item
Variable Frequency Drive
Control Method
Frequency Control (V/f) Open Loop Sensor less
With Bypass / No Bypass
No Bypass
For Use With
3-Phase Inverter Duty Motor
Dynamic Braking
Optional
Max. Output Amps
105 A
Output Phase AC
Three
Output Voltage
480V AC
With Line Contactor / No Line Contactor
No Line Contactor
Starting Torque
2
Key Pad Lockout
Yes
Adjustable Deceleration Time
0 to 3,000 sec
Output Frequency Range
0 to 320 Hz
Displays
LCD Keypad
Input Voltage
480V AC
Adjustable Acceleration Time
0 to 3,000 sec
Start/Stop Control
Programmable
Standards
UL
Input Phase AC
Three
Input Frequency
50/60 Hz
Accepts Input Control Signal
0-10V DC, 4-20mA
Maximum Output Power
75 hp
Maximum Output Current
48 A
Enclosure Rating
NEMA 1

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 75 hp, Maximum Output Current 48 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
