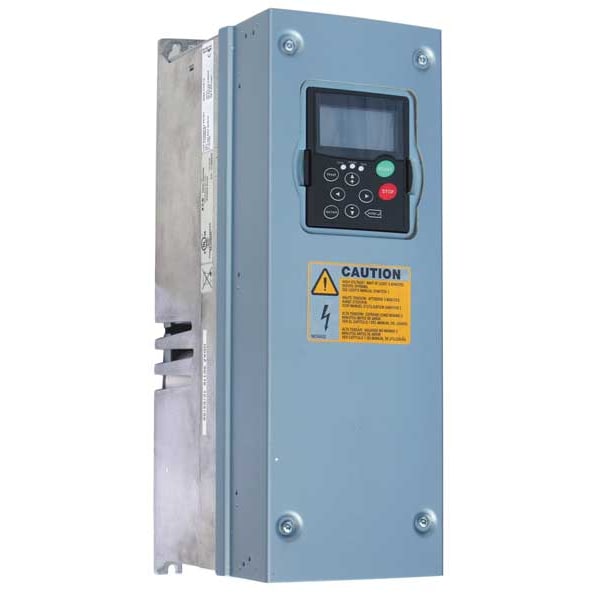

Eaton Variable Frequency Drive, 7.5HP, 208-240V HVX007A2-2A1B1

Variable Frequency Drive, 7.5HP, 208-240V (Discontinued)

  • Mfr # HVX007A2-2A1B1
  • Zoro # G3438206
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HVX007A2-2A1B1
Zoro #
G3438206
UPC #
782116121564
Country of Origin
Finland

Dimensions

Depth
8.4 in
Width
5.6 in
Height
16.5 in
Overall Height
16 1/2 in
Overall Width
5 5/8 in
Overall Depth
8 3/8 in

Details

Digital Readout
Yes
Output Voltage
240V AC
Output Phase AC
Three
Max. Output Amps
25 A
Control Type
Keypad
With Line Contactor / No Line Contactor
No Line Contactor
Input Phase AC
Three
Accepts Input Control Signal
0-10V DC, 4-20mA
Standards
UL
Torque @ 1 Hz
1
With Bypass / No Bypass
No Bypass
Output Frequency Range
0 to 320 Hz
Control Method
Frequency Control (V/f) Open Loop Sensor less
Key Pad Lockout
Yes
Adjustable Deceleration Time
0 to 3,000 sec
Item
Variable Frequency Drive
For Use With
3-Phase Inverter Duty Motor
Max. HP
7.5 hp
Enclosure
Open
Display Type
LCD
Start/Stop Control
Programmable
Input Frequency
50/60 Hz
Input Voltage
240V AC
Dynamic Braking
Internal Brake Chopper Circuit
Starting Torque
2
Displays
LCD Keypad
Adjustable Acceleration Time
0 to 3,000 sec
Protection
Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Maximum Output Power
7 hp
Enclosure Rating
NEMA 12
Maximum Output Current
25 A

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 hp, Maximum Output Current 25 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 12
