This item is Discontinued.

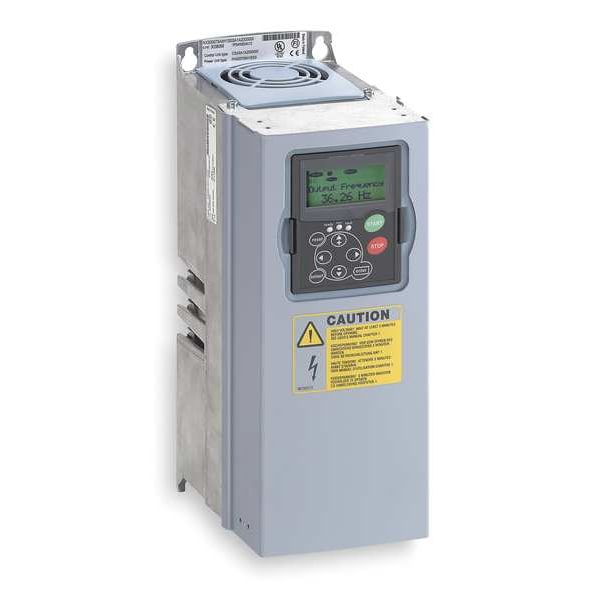

Eaton Variable Frequency Drive, 7.5HP, 380-500V HVX007A2-4A1B1

Variable Frequency Drive, 7.5HP, 380-500V (Discontinued)

  • Mfr # HVX007A2-4A1B1
  • Zoro # G2725895
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HVX007A2-4A1B1
Zoro #
G2725895
UPC #
-
Country of Origin
Finland

Dimensions

Height
12.9 in
Width
5 in
Depth
7.5 in
Overall Depth
7 1/2 in
Overall Height
12 7/8 in
Overall Width
5 in

Details

Max. HP
7.5 hp
Torque @ 1 Hz
100%
Digital Readout
Yes
Max. Output Amps
12 A
Output Phase AC
Three
Item
Variable Frequency Drive
Display Type
LCD
Adjustable Acceleration Time
0 to 3,000 sec
Starting Torque
200%
Displays
LCD Keypad
Dynamic Braking
Internal Brake Chopper Circuit
Key Pad Lockout
Yes
Input Frequency
50/60 Hz
Enclosure
Open
For Use With
3-Phase Inverter Duty Motor
Output Frequency Range
0 to 320 Hz
With Line Contactor / No Line Contactor
No Line Contactor
Protection
Earth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Standards
UL
Output Voltage
500V AC
Accepts Input Control Signal
0-10V DC, 4-20mA
Start/Stop Control
Programmable
Adjustable Deceleration Time
0 to 3,000 sec
With Bypass / No Bypass
No Bypass
Input Voltage
500V AC
Control Type
Keypad, Terminal, Network
Input Phase AC
Three
Control Method
Frequency Control (V/f) Open Loop Sensor less
Maximum Output Current
12 A
Application
Fluid Control, HV AC, Pump
Enclosure Rating
NEMA 12
Maximum Output Power
7 1/2 hp

Description

Variable Frequency Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 12 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 12
