  11. Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Spring Clamp Terminals, Black

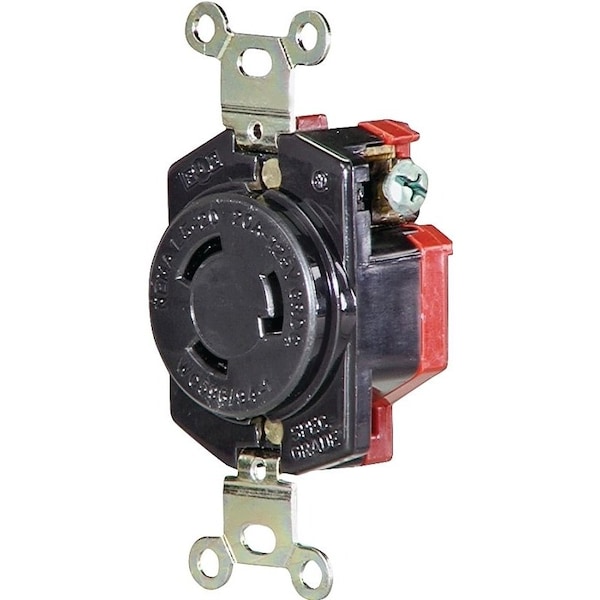

Eaton Wiring Devices Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Spring Clamp Terminals, Black L520R - main

Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Spring Clamp Terminals, Black

  • Mfr # L520R

  • Zoro # G804350865

product price: $26.55
/ea

Key Features

NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L520R
Zoro #
G804350865
UPC #
32664417603
Country of Origin
United States

Dimensions

Product Length/Depth
1.44 IN
Product Height
3.68 IN
Allowable Wire Size
#14-8 AWG
Product Width
1.71 IN

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Cover Type
No Cover
Standards
CSA certified, Federal Specification Classification, NOM, UL Listed
Flange Type
Non-Flanged
Special Features
Severe duty locking plug
Material
Nylon
Application
Industrial
Face/Body Material
Nylon
Contact Material
Brass
Certifications
UL Listed
Design Type
Single receptacle
Device Grade
Commercial specification grade

Description

Rugged nylon face and body. Clearly marked rating, NEMA configuration and approval listings on receptacle face. One-piece brass contacts for performance and minimum heat rise. Back wire terminal clamps for secure wiring. Combination head screws standard slot/Phillips.
