  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded
Eaton Wiring Devices Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20V - main

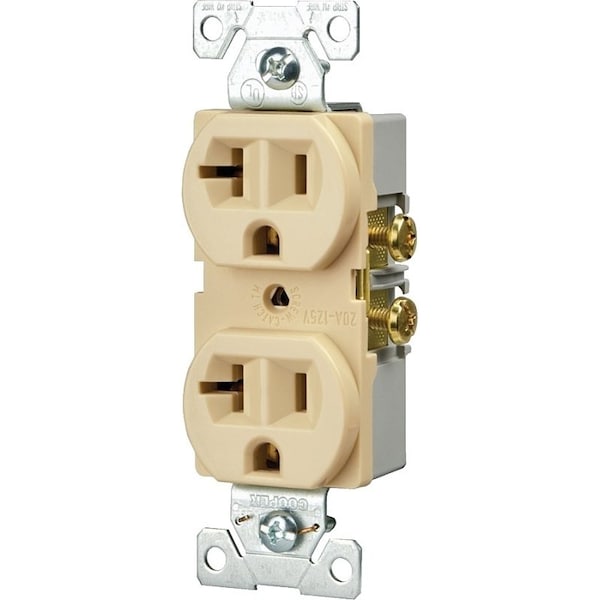

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20V

  • Zoro # G107466263

product price: $6.69
/ea
Sold in multiples of 2 for $13.38

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20V
Zoro #
G107466263
UPC #
32664750731
Country of Origin
United States

Dimensions

Product Height
4.2 IN
Product Length/Depth
1.3 IN
Product Width
.88 IN

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
Federal Specification Classification, NOM, UL
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Material
PVC
Special Features
Auto-grounding, screw-catch
Application
Commercial
Contact Material
Brass
Number Of Wires
Three-wire
Style Type
Standard
Device Type
Receptacle
Device Grade
Commercial specification grade
Certifications
UL
Face/Body Material
High-impact nylon, PVC
Design Type
Straight blade
Connection Type
Screw

Description

High impactresistant thermoplastic face Triple wipe line contacts for longterm plug retention Double wipe ground contacts for ground retention 050 thick steel wraparound mounting strap zincplated for corrosion resistance Easy access split circuit breakoff tab Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure Back and side wire terminals accept 14, 12 and 10 solid or stranded wire Terminal screws backed out Combination slotPhillips head mounting and terminal screws Meets all UL 498 requirements Federal specifications WC596 Bulk Pak UL Listed
