Shop HUBBELL WIRING DEVICE-KELLEMS

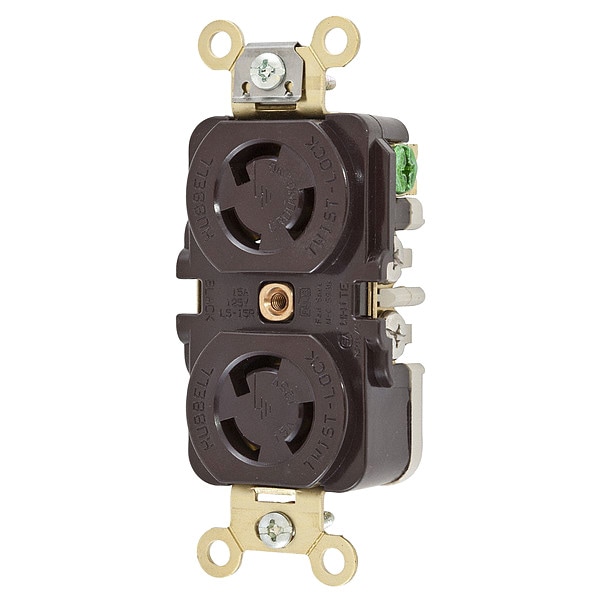

Duplex Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Brown

  • Mfr # HBL4700

  • Zoro # G0825894

product price:
$
40.91
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL4700
Zoro #
G0825894
UPC #
783585002309
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Wire Size
15A #14 AWG

Details

Item
Duplex Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Nylon
Grade
Industrial
IP Rating
IP20
Special Features
With Cover
NEMA Enclosure Rating
12, 4X
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Market
Industrial
For Environment
Dry
Horsepower Rating
1/2 hp
Housing Material
Thermoplastic
Shrouded
No
Includes
Mounting Strap
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Number of Gangs
1
Connection Orientation
Straight
AFCI
No
Contact Material
Brass
Spring Material
.031" Brass
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Base Material
RTP
Terminal Designations
Terminals identified in accordance with UL 498
Amps
15
UL 94 Flammability Rating
HB

Description

The HUBBELL 15A Duplex Locking Receptacle (L5-15R BN) is a flush mount, twist-lock receptacle intended for indoor industrial applications. It features reinforced thermoplastic construction and all brass contacts with brass contacts for electrical connectivity to provide secure electrical connections for single-phase, 2-pole, 3-wire systems rated at 125V AC and up to 15 amps. This duplex locking receptacle includes mounting hardware and a cover, making it suitable for dry locations in locations requiring a power connection where reliable power connection is required.


Key Features of the HUBBELL 15A Duplex Locking Receptacle:

  • NEMA Configuration: L5-15R; twist-lock design helps maintain secure plug retention.

  • Material Construction: Reinforced thermoplastic base with nylon housing; impact resistant.

  • Contact Material: Single piece, all brass contacts for consistent conductivity.

  • Wire Connection Type: Screw terminals accept wire sizes from 18 AWG to 10 AWG (#14 AWG recommended).

  • Operating Temperature Range: -40°F to 167°F (maximum continuous temperature of 75°C without impact).

  • Mounting Type: Flush mount with included mounting strap and hardware; non-flanged design.

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed.

  • NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20; intended for indoor use in dry environments only.
