This item is Discontinued.

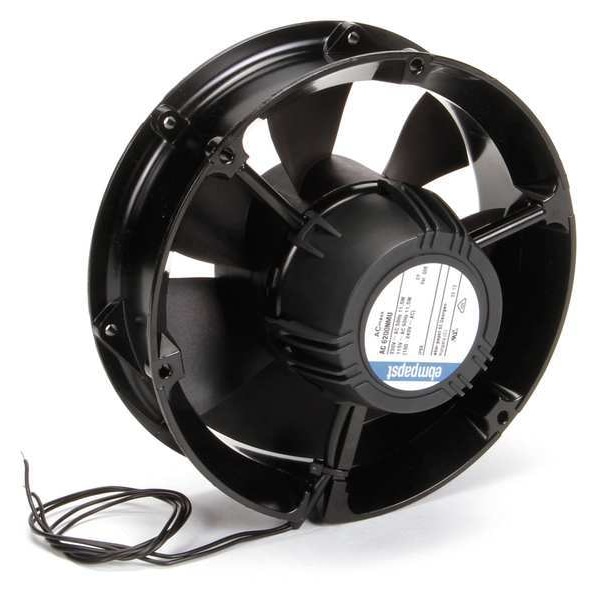

Ebm-Papst Axial Fan, Round, 115/230V AC, single Phase, Cast Aluminum AC6200NMU-006

Axial Fan, Round, 115/230V AC, single Phase, Cast Aluminum (Discontinued)

  • Mfr # AC6200NMU-006
  • Zoro # G1128084
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AC6200NMU-006
Zoro #
G1128084
UPC #
-
Country of Origin
Multiple

Dimensions

Depth
2 in
Fan Depth
2"
Fan Dia.
6-3/4"
Diameter
6 3/4 in

Details

Blade Material
Fiberglass Reinforced Polyamide
CFM @ 0.000-In. SP
86 cfm
Housing Material
Cast Aluminum
Phase
single
Shape
Round
Watts
14 W
Voltage
115/230V AC
Housing Finish
Black Painted
Mounting Eye O.C. - Fans
6-3/8"
Item
Axial Fan
Electrical Connections
17 1/2" Leads
Fan Watts
14.0
Hz
50/60 Hz
Motor Type
AC Input Electronically Commutated Brushless DC
Standards
UL and C-UL Recognized and RoHS compliant
Fan Item
Axial Fan
Amps
0.25 A
Mounting Eye O.C.
6 3/8 in
Thermal Protection
Electronic
dBA
50
Fan Shape
Round
Fan dBA
50
IP Rating
IP55
Bearings
Ball
Fan RPM
2850
Motor Insulation
Class E
Electrical Connection - Fans
17.5" Leads
Mounting Position
Vertical or Horizontal
Max. Ambient Temp.
158 Degrees F
Fan Voltage
115/230VAC
Bearing Type
Ball
RPM
2850 RPM
Environmental Applications
Equipment Cooling

Description

Axial Fan, Fan Shape Round, Mounting Eye O.C. 6 3/8 in, Height Not Applicable, Diameter 6 3/4 in, Depth 2 in, Width Not Applicable, CFM @ 0.000-In. SP 86 cfm, Watts 14 W, Voltage 115/230V AC, 60/50 Hz Hz, 0.25 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 50 dBA, IP Rating IP55, Mounting Position Horizontal/Vertical, Bearing Type Ball, 2,850 RPM RPM, Motor Insulation E, Thermal Protection Yes, Max. Ambient Temp. 158 Degrees F, Blade Material Polyamide, Housing Material Aluminum
