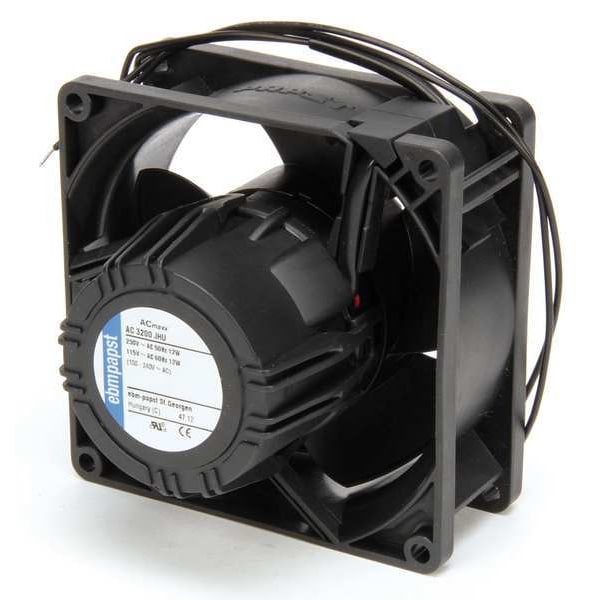

Axial Fan, Square, 115/230V AC, 1 Phase, Fiberglass Reinforced Plastic, 3 5/8 in W.

  • Mfr # AC3200JHU
  • Zoro # G0297071
product price:
$
209.99
/ea
Free Shipping & Returns

Key Features

Blade Material
Polyamide
CFM @ 0.000-In. SP
47.1 cfm
Depth
1 1/2 in
Height
3 5/8 in
Housing Material
Fiberglass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AC3200JHU
Zoro #
G0297071
UPC #
-
Country of Origin
Germany

Dimensions

Depth
1 1/2 in
Height
3 5/8 in
Width
3 5/8 in
Fan Width
3-5/8"
Fan Width
3-5/8"
Fan Depth
1-1/2"
Fan Dia.
1"
Fan Height
3-5/8"

Details

Blade Material
Polyamide
CFM @ 0.000-In. SP
47.1 cfm
Housing Material
Fiberglass
Phase
1
Shape
Square
Watts
11 W
Voltage
115V AC, 230V AC
Motor Type
AC Input Electronically Commutated Brushless DC
Item
Axial Fan
Standards
UL and C-UL Recognized and RoHS compliant
Fan dBA
55
Thermal Protection
Yes
Fan Shape
Square
Bearings
Ball
Max. Ambient Temp.
158 Degrees F
Hz
50/60 Hz
Amps
0.18 A
Motor Insulation
E
Fan Item
Axial Fan
Electrical Connections
17-1/2" Leads
Fan Watts
11.0
dBA
55
Housing Finish
Black
Fan RPM
6800
Mounting Eye O.C. - Fans
3-1/4"
Mounting Eye O.C.
3 1/4 in
IP Rating
IP65
Electrical Connection - Fans
Lead Wires
Mounting Position
Horizontal/Vertical
Fan Voltage
115V AC, 230V AC
Bearing Type
Ball
RPM
6,800 RPM
Environmental Applications
Equipment Cooling
Sound Level
55 dBA
Environment Rating
Wet

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 3 1/4 in, Height 3 5/8 in, Depth 1 1/2 in, Width 3 5/8 in, CFM @ 0.000-In. SP 47.1 cfm, Watts 11 W, Voltage 115/230V AC, 60/50 Hz Hz, 0.18 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 55 dBA, IP Rating IP65, Mounting Position Horizontal/Vertical, Bearing Type Ball, 6,800 RPM RPM, Motor Insulation E, Thermal Protection Yes, Max. Ambient Temp. 158 Degrees F, Blade Material Polyamide, Housing Material Fiberglass
