  5. Compact Blower, Square, 24V DC, Fiberglass Reinforced Plastic with Galvanized Steel Base

This item is Discontinued.

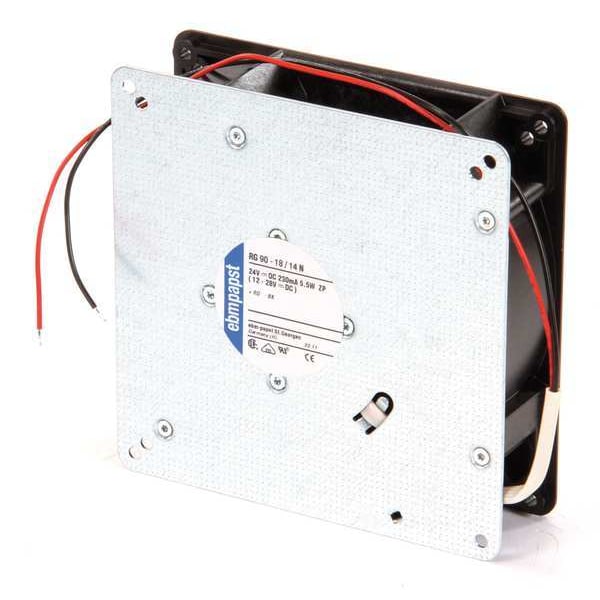

Ebm-Papst Compact Blower, Square, 24V DC, Fiberglass Reinforced Plastic with Galvanized Steel Base RG90-18/14N

Compact Blower, Square, 24V DC, Fiberglass Reinforced Plastic with Galvanized Steel Base (Discontinued)

  • Mfr # RG90-18/14N
  • Zoro # G0772353
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RG90-18/14N
Zoro #
G0772353
UPC #
-
Country of Origin
Multiple

Dimensions

Depth
1 1/2 in
Height
5 5/16 in
Width
5 5/16 in
Fan Dia.
1-1/2"
Fan Width
5-21/64"
Fan Width
5-21/64"
Fan Depth
1-1/2"
Fan Height
5-21/64"
Lead Length
13 in

Details

Blade Material
Fiberglass Reinforced Plastic
CFM @ 0.000-In. SP
32.4 cfm
Housing Material
Fiberglass Reinforced Plastic with Galvanized Steel Base
Shape
Square
Watts
5.5 W
Voltage
24V DC
Motor Insulation
Class E
Mounting Eye O.C. - Fans
4-7/8"
Mounting
Flange
Fan Shape
Square
dBA
55
Standards
UL
Electrical Connection - Fans
Lead Wires
Fan Voltage
24VDC
Amps
0.25 A
Fan Item
Flatpack Axial Fan
Fan dBA
55
Mounting Position
Vertical or Horizontal
Fan Watts
5.5
Mounting Eye O.C.
4-7/8 in
Max. Ambient Temp.
167 Degrees F
Electrical Connections
13-2/5" Leads AWG 22
Housing Finish
Black Painted
Item
Compact Blower
Fan RPM
2200
Motor Type
Brushless DC
Bearings
Ball
Thermal Protection
Electronic
IP Rating
Not Rated
Bearing Type
Ball
Environmental Applications
Equipment Cooling
Sound Level
55
RPM
2,200 RPM
Type
Flatpack

Description

Compact Blower, Fan Shape Square, 5 5/16 in Height, 5 5/16 in Width, 1 1/2 in Depth, 32.4 cfm CFM @ 0.000-In. SP, Watts 5.5 W, Voltage 24V DC, 0.25 A Amps, Electrical Connection - Fans Lead Wires, 13 in Lead Length, Sound Level 55 dBA, IP Rating Not Rated, Mounting Position Horizontal/Vertical, Bearing Type Ball, 2,200 RPM RPM, Motor Insulation E, Thermal Protection Yes, Max. Ambient Temp. 167 Degrees F, Blade Material Fiberglass, Housing Material Fiberglass, Standards UL
