  5. Flatpack Axial Fan, Square, 115V AC, 1 Phase, 8 11/16 in W.

This item is Discontinued.

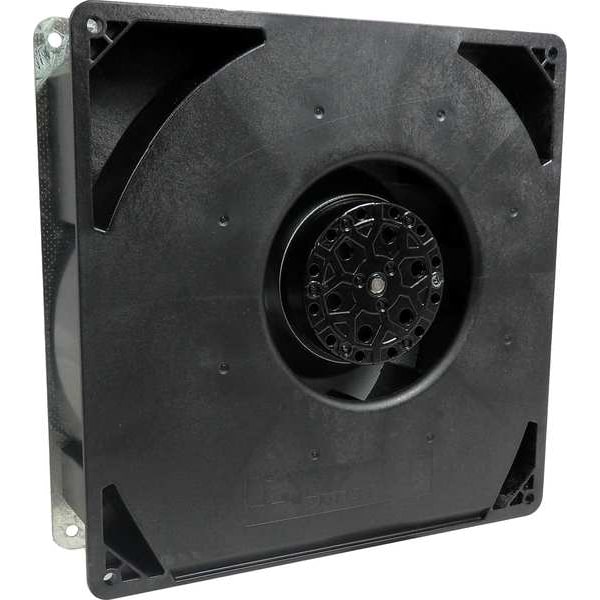

Ebm-Papst Flatpack Axial Fan, Square, 115V AC, 1 Phase, 8 11/16 in W. RG160-28/06S

Flatpack Axial Fan, Square, 115V AC, 1 Phase, 8 11/16 in W. (Discontinued)

  • Mfr # RG160-28/06S
  • Zoro # G0948665
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RG160-28/06S
Zoro #
G0948665
UPC #
-
Country of Origin
Hungary

Dimensions

Depth
2 3/16 in
Height
8 11/16 in
Width
8 11/16 in
Fan Height
8-21/32"
Fan Dia.
2-3/16"
Fan Width
8-21/32"
Fan Depth
2-13/64"
Fan Width
8-21/32"
Lead Length
12 in

Details

Blade Material
Fiberglass Reinforced Plastic
CFM @ 0.000-In. SP
131 cfm
Housing Material
Fiberglass Reinforced Plastic with Galvanized Steel Base
Phase
1
Shape
Square
Watts
50 W
Voltage
115V AC
Standards
UL
Mounting Eye O.C. - Fans
8"
Fan RPM
3050
Thermal Protection
Impedance
Fan Voltage
115VAC
Motor Type
Shaded pole
Amps
0.68 A
Bearings
Ball
Mounting Eye O.C.
8 in
Max. Ambient Temp.
176 Degrees F
Fan dBA
69
Fan Watts
50
Electrical Connections
12-4/5" Leads AWG 18
Motor Insulation
Class F
Hz
60 Hz
Mounting
Flange
Fan Shape
Square
Housing Finish
Black Painted
Electrical Connection - Fans
Lead Wires
Item
Flatpack Axial Fan
dBA
69
Fan Item
Flatpack Axial Fan
Mounting Position
Vertical or Horizontal
IP Rating
Not Rated
Sound Level
69
Environmental Applications
Equipment Cooling
Bearing Type
Ball
RPM
3,050 RPM
Type
Flatpack

Description

Compact Blower, Fan Shape Square, 8 11/16 in Height, 8 11/16 in Width, 2 3/16 in Depth, 131 cfm CFM @ 0.000-In. SP, Watts 50 W, Voltage 115V AC, 60 Hz Hz, 0.68 A Amps, Electrical Connection - Fans Lead Wires, 12 in Lead Length, Sound Level 69 dBA, IP Rating Not Rated, Mounting Position Horizontal/Vertical, Bearing Type Ball, 3,050 RPM RPM, Motor Insulation F, Thermal Protection Yes, Max. Ambient Temp. 176 Degrees F, Blade Material Fiberglass, Housing Material Fiberglass, Standards UL
