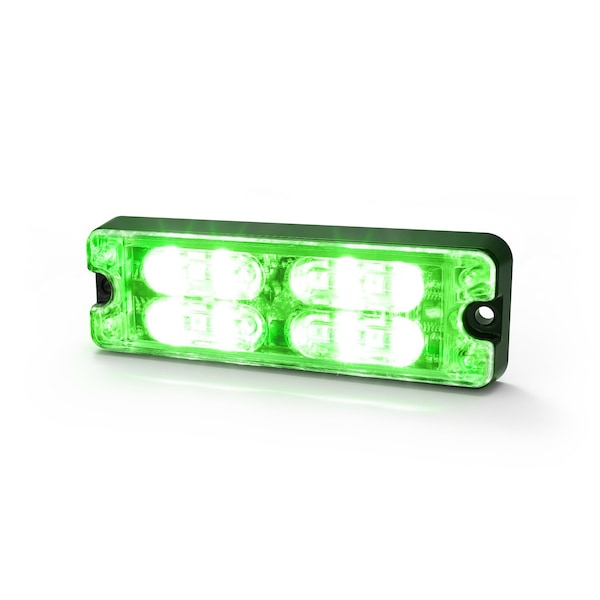

Warning Light, LED, 12-24V

  • Mfr # ED3511GW

  • Zoro # G915830379


product price:  $119.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Features
Maximum Performance with a Minimal Footprint
SAE Class Rating
SAE J845 Class 1
Light Color
Green, White
Light Pattern
Flashing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ED3511GW
Zoro #
G915830379
UPC #
758379138212
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
1-1/8 in
Overall Length
3-5/16 in
Overall Depth
1/2 in

Details

Item
Warning Light
Lighting Technology
LED
Features
Maximum Performance with a Minimal Footprint
SAE Class Rating
SAE J845 Class 1
Light Color
Green, White
Light Pattern
Flashing
Lens Color
Clear
Lens Material
Polycarbonate
Mount Style
Surface
Current
1.4 A
IP Rating
IP67
Installation Type
Permanent
Voltage
TRUE
Compatible Vehicle Type
Includes
Light / Mounting Hardware
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Includes Electrical Connection
Electrical Connection Included
Light Type
Flashing Beacon
Series
ED3511 Series
Shape
Rectangular
Number of Heads
2
Electrical Connection
20 AWG Wires
Number of Flash Patterns
69
Standards
CA T13, CE, R10, R65, RCM, RoHS, SAE Class I, UKCA
Number of Bulbs
12
Mount Type
Screw
Minimum Operating Temperature
-22 Degrees F
Maximum Operating Temperature
122 Degrees F

Description

Warning Light, Light Type Flashing Beacon, Light Color Green/White, Wattage Not Applicable, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection 20 AWG Wires, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V, Overall Length 3 5/16 in, Overall Diameter Not Applicable, Overall Height 1 1/8 in, Overall Depth 1/2 in, IP Rating IP67
