Shop ECONOMASTER

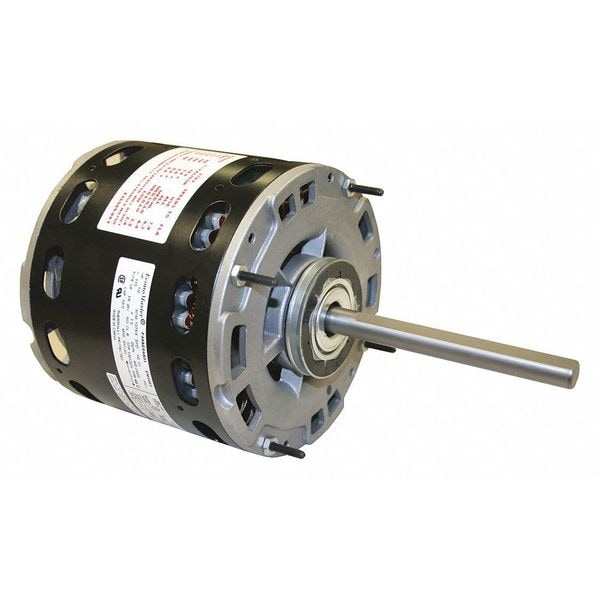

Direct Drive Fan/Blower Motor, 1/2 hp

  • Mfr # EM3464

  • Zoro # G0126679

product price:  $158.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/2
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EM3464
Zoro #
G0126679
UPC #
786674060389
Country of Origin
India

Dimensions

Mounting Stud Length
16/25 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/4 in
Lead Length
36 1/2 in
Stud Size
#8-32
Overall Length
10 3/8 in
Length Less Shaft
5 7/8 in
Body Dia.
5 5/8 in
Shaft Length
4 1/2 in
Resilient Ring Diameter
2 1/4 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/2
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
208-230V AC
Frame
48Y
Motor Mounting Type
Extended Studs
Phase
Single
Motor Enclosure Design
Open Enclosed
Standards
CSA Certified, UL Listed
Includes
(4) Split Ring Adaptor (615035), (8) Screws Polybag (N194P150489)
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Usable @ 200V
Usable at 200V
Motor Bearings
Ball
Ring to Ring Center
5 21/50 in
No. of Speeds
4
Capacitor Required
Capacitor Included
Motor Service Factor
1
Motor Thermal Protection
Auto
Voltage Compatibility
208V AC, 230V AC
Full Load Amps
3.9 A
Ins. Class
B
Weight
15 lb
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Usable at 208V
Motor Mounting Position
Horizontal
Motor Shaft Design
Flat
Motor Frame Material
Steel
Motor Application
Direct Drive Fan/Blower
Motor Sub Application
Direct Drive Fan/Blower
Frequency
60 Hz
Shaft Design
Flat
Mounting Position
Horizontal
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Wattage
370 W
Product Type
Fan and Blower Motor
Inverter Rating
Not Inverter Rated
Insulation Class
B
Drive Type
Belt Drive
Bearing Type
Ball
Number of Speeds
4
Full Load Current @ 60 Hz
3.9 A
Motor Enclosure Type
Open

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 208-230V AC, Full Load Amps 3.9 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Enclosed, Motor Mounting Position Horizontal, Motor Frame Material Steel
