Shop ECONOMASTER

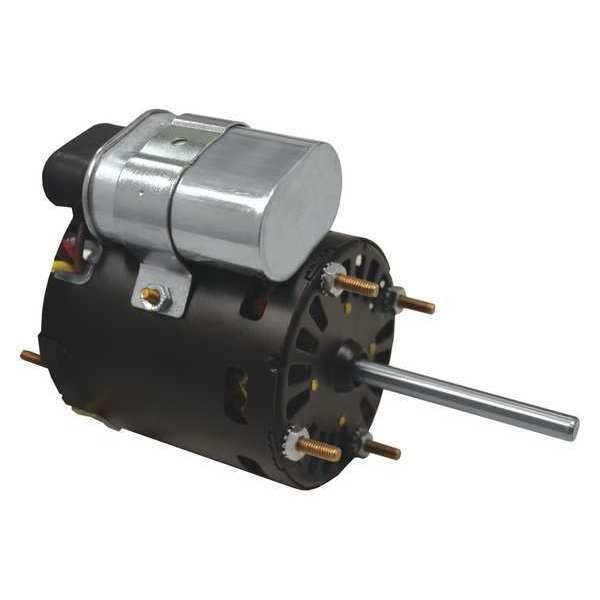

Direct Drive Fan/Blower Motor, 1/12 hp

  • Mfr # EM1127
  • Zoro # G0126782
product price:
$
100.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/12
RPM Range
1,501-1,600
Nameplate RPM
1,550
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EM1127
Zoro #
G0126782
UPC #
786674070234
Country of Origin
China
Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/12
RPM Range
1,501-1,600
Nameplate RPM
1,550
Voltage
115/230V AC
Frame
3.3
Motor Mounting Type
Extended Studs
Phase
Single
Motor Enclosure Design
Open Air-Over
Standards
UL Listed
Ins. Class
B
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Weight
3.97 lb
Hz
60 Hz
Usable @ 200V
Usable at 200V
Usable @ 208V
Usable at 208V
Voltage Compatibility
115V AC, 230V AC
Ring to Ring Center
5 21/50 in
Motor Shaft Rotation
CW/CCW
Full Load Amps
1.1/0.60 A
Motor Frame Material
Steel
Capacitor Required
Capacitor Included
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Sub Application
Refrigerator/Freezer
Motor Mounting Position
Horizontal
Motor Application
HVAC/R
Output Watts
0.06 kW
Inverter Rated
No
Full Load Current @ 60 Hz
1.1/0.60 A
Wattage
60 W
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Bearing Type
Sleeve
Drive Type
Direct Drive
Sub Application
General Purpose
Number of Speeds
1
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Not Inverter Rated
Mounting Position
Horizontal
Product Type
Fan and Blower Motor
Frame Material
Steel
Shaft Design
Flat

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/12 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/230V AC, 1.1/0.60 A Full Load Amps, Output Watts 0.06 kW, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Air-Over, Motor Frame Material Steel, Inverter Rated No, Motor Mounting Position Horizontal
